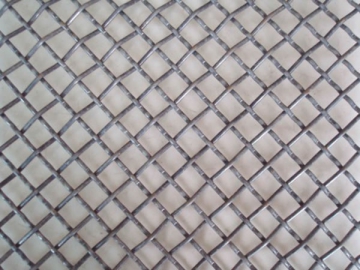

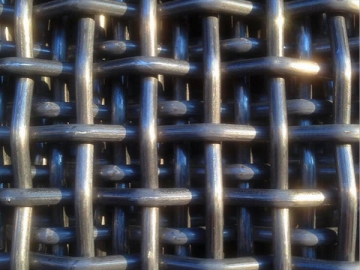

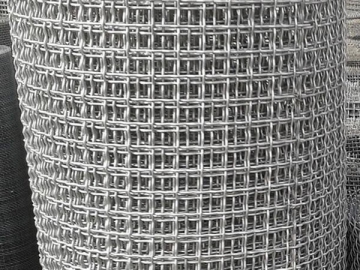

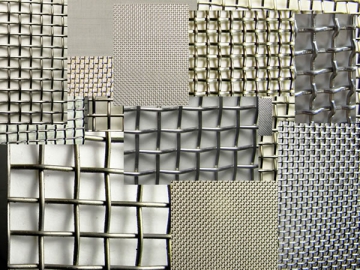

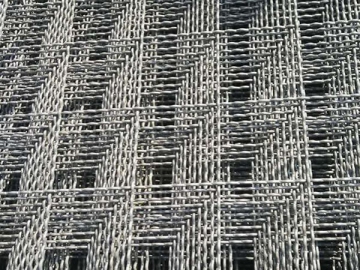

Crimped Wire Mesh
Woven Wire Mesh / Steel Wire Mesh / Steel Screen

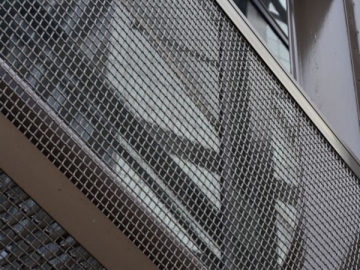

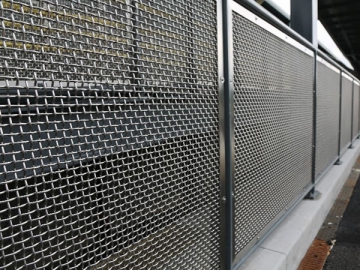

Our crimped wire mesh is produced using carbon steel wire, galvanized steel wire or stainless steel wire. The wires are then weaved in a crimping pattern. The woven wire mesh can then be used as a screening device in mines, coal factories, construction and many more applications. Some galvanized products can be used for food production.
Specification of the Crimped Wire Mesh / Wire Mesh for Roast| SWG | Wire Diameter | Mesh | mm | Weight kg/m2 | |
| 14 | 2.0 | 21 | 1 | 4.2 | |
| 8 | 4.05 | 18 | 1 | 15 | |
| 25 | 0.50 | 20 | 0.61 | 2.6 | |
| 23 | 0.61 | 18 | 0.8 | 3.4 | |
| 24 | 0.55 | 16 | 0.1 | 2.5 | |
| 24 | 0.55 | 14 | 0.12 | 4 | |
| 22 | 0.71 | 12 | 0.14 | 2.94 | |
| 19 | 1 | 2.3 | 0.18 | 1.45 | |
| 6 | 4.8 | 1.2 | 2 | 20 | |
| 6 | 4.8 | 1 | 2 | 20 | |
| 6 | 4.8 | 0.7 | 3 | 14 | |
| 14 | 2.0 | 5.08 | 0.3 | 12 | |
| 14 | 2.0 | 2.1 | 1 | 2.5 | |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 | |
| Other specification is available | |||||
