Features
1. The plate gas and liquid solenoidvalve is a valve for use with water, gas and oil.
2. It is sealed by the
VITON.
3. Medium temperature:
-10120.
4. Protection degree of the coils: encapsulate coil: IP65.
5. Acting pattern of the plate gas and liquid solenoid valve: direct acting.
6. Working voltage: AC220V, AC110V, DC24V andDC12V.
7. Materials: brass
(HPb59-1).
8. Voltage range:
AC -15%10% DC-10%10%.

Pictures

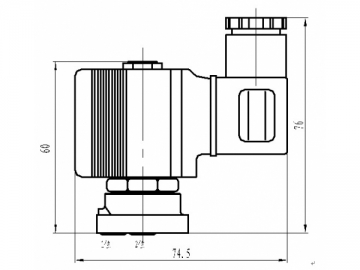

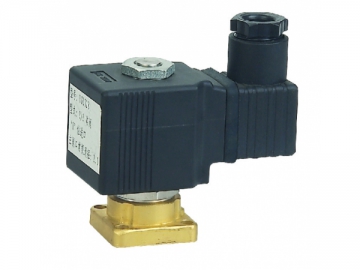

YSL028
YSL028 (2)
YSL028 (two position and two way)

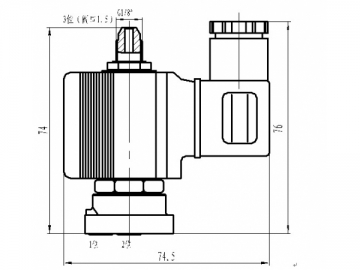

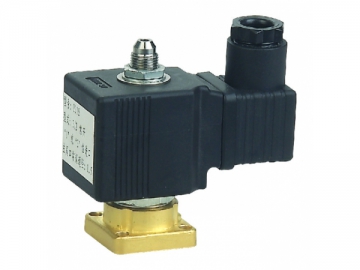

231S
231S (2)
231S (two position and three way, supply hole is optional)

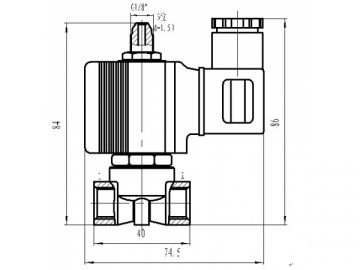

231W
231W (2)
231W (two position and three way)

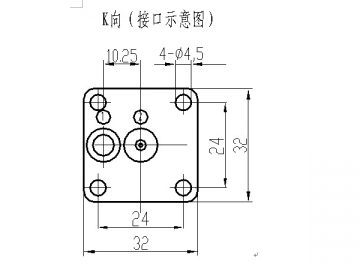

All the plate type joints are the same.

Technical Parameters of the Plate Gas and Liquid SolenoidValve


Model

Working Pattern

Hole Diameter (mm)

Working Voltage (Bar)

Cv Factor

Note

AC

DC

YSL028

Two position and two way (normally closed)

1.5

0~30

0~20

0.06

Supply hole: 1

2.0

0~25

0~16

0.12

231S

Two position and three way (normally open)

1.5

0~15

0~12

0.06

Supply hole: 1 or 3

Two position and three way (normally closed)

1.5

0~10

0~10

0.06

Supply hole: 2

2.0

0~8

0~8

0.12

231W

Two position and three way (normally closed)

1.0

0~10

0~10

0.03

Supply hole: 2

1.2

0~10

0~10

0.05

1.5

0~8

0~6

0.06

2.0

0~8

0~5

0.12

2.5

0~5

0~3

0.20

YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturer ofplate liquid solenoid valve, based in China.  We offer various types of products such asplate gas solenoid valve, low power solenoid valve, water cooler solenoid valveand so on.  Our products are high qualityand competitively priced.  We can completethe full chain of manufacturing irons solenoid valve, plastic solenoid valve,etc. right here in China.  Our lower manufacturing cost can save yourpurchasing cost.  A more detaileddescription of our product is shown on the page.
