Air Oil Separator Filter

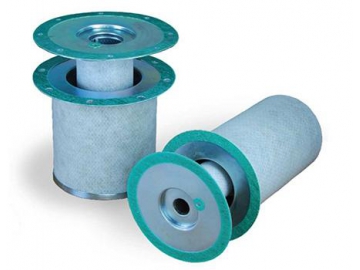

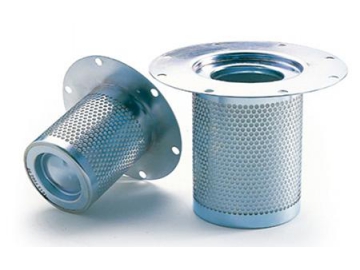

Air oil separator filters are primarily used to remove solid dust, oil mist, and other liquid substances found in compressed air systems. Our filter elements feature a corrosion resistant, superfine fiber agglomerate as the main material, ensuring any solid particles above 3μm in size within the compressed air will be removed. Tiny dissolved oil water drops about 0.01-1μm will be combined into lager oil drops when passing through the filtration element, then accumulate on the bottom to ensure the compressed air is pure and oil free.
Air oil separator filters are widely used in textile, chemical, metallurgical, electronics, pharmaceuticals, food, cigarette, and cement industries to provide high quality and pure compressed air.
- Filtration rating: 0.1μm
- Oil content: ≤3ppm
- Service life: ＞4000h
- Initial differential pressure: ≤0.2bar
- Working temperature: ＜120℃
Specific parameters can be customized according to your requirements.
| Model No. | Mann Model No. | Flow Rate(NM3/min.) | Residual Oil Content ppm | Pressure drop Bar | Overall Dimension(mm) | |||
| d1 | d2 | d3 | H | |||||
| LYF-3.5 | 49 306 52 121 | 3.5 | ≤3 | 0.2 | 135 | 220 | 75 | 160 |
| LYF-4.5 | 49 306 52 131 | 4.5 | 135 | 170 | 75 | 200 | ||
| LYF-6.5 | 49 306 52 101 | 6.5 | 170 | 200 | 109 | 230 | ||
| LYF-9 | 49 306 52 131 | 9 | 170 | 200 | 109 | 305 | ||
| LYF-16 | 49 306 52 121 | 16 | 300 | 355 | 220 | 305 | ||
| LYF-20 | 49 306 52 111 | 20 | 275 | 328 | 209 | 400 | ||
| LYF-22 | 49 306 52 101 | 22 | 300 | 355 | 220 | 400 | ||
| LYF-28 | 49 306 52 111 | 28 | 300 | 355 | 220 | 500 | ||
| LYF-33.5 | 49 306 52 101 | 33.5 | 300 | 355 | 220 | 600 | ||
| LYF-39 | 49 306 52 102 | 39 | 300 | 355 | 220 | 700 | ||
| Model No. | Flow Rate(NM³/min.) | Residual Oil Content ppm | Pressure drop Bar | Overall Dimension(mm) | ||||
| d1 | d2 | d3 | h1 | h2 | ||||
| ZYF-3 | 3 | ≤3 | 0.2 | 135 | 219 | 70 | 210 | |
| ZYF-4.5 | 4.5 | 135 | 219 | 70 | 300 | 12 | ||
| ZYF-6 | 6 | 220 | 272/254 | 148 | 230 | 12 | ||
| ZYF-10 | 10 | 220 | 272 | 148 | 356 | 12 | ||
| ZYF-12 | 12 | 220 | 336 | 148 | 355 | |||
| ZYF-14 | 14 | 300 | 375 | 213 | 360 | 12 | ||
| ZYF-20 | 20 | 300 | 375 | 213 | 455 | |||
| ZYF-30 | 30 | 300 | 355 | 213 | 595 | 12 | ||
| ZYF-40 | 40 | 300 | 450 | 265 | 600 | |||
| Air Compressor Power | NM³/min.@0.7Mpa | Flange × H(mm) |
| 20～40HP | 2.8～4.5 | φ200×250 |
| 50～60HP | 6.1～7.6 | φ270×405 |
| φ270×360 | ||
| 100HP | 13.2～14.4 | φ270×405 |
| φ270×360 | ||
| 150HP | 21 | φ350×620 |
| φ350×460 | ||
| 300HP～350JP | 41.8 | φ600×568 |
| φ600×423 | ||
| N50HP N60HP 75HP | φ355×280 | |
| φ355×234 | ||
| LS-20/16-100 LS-20/16-125-150 | φ350×670 | |
| φ350×460 | ||
| φ588×930 | ||
| φ588×670 | ||
| 23～30 | φ350×500 |
