Standard Robotic Welding Cells

: http://inverter-welder.com/5-robotic-welding-systems.html

Intuitive Communication Interfaces, Top-level of Robot Hardware & Software Modules

Features

Exceptional arc stability and constant welding parameters, resulting in reliable and consistent weld quality;
Wire feeder is equipped with European style welding torch connector as default, and Japanese type welding torch connector is optional;
Available in options of analog cables that are compatible with standard connectors from world’s renowned robotic welding equipment brands such as ABB, FANUC and YASKAWA;
High flexibility of communication, accessible interface modules include Analog, DeviceNet and CAN Open interfaces;
Easily and precisely finding the welding location, without the need for additional touch sensor power source;
Accurate real-time feedback on welding current and voltage, adjustable filter parameter, and through-arc seam tracking (TAST) available;
Supporting push-pull robotic welding torch, enabling the torque and speed to be fully synchronized with wire feeder for precise wire feeding;

Advantages of RWAS Robotic Arc Welding Package

Fast speed
Newly developed robotic welding arm is featured by more lightweight structure. Japanese Teijin RV reducer is adopted to ensure high transmission accuracy, and the practice running speed is improved by approximately 30% when compared with those robotic welding systems from domestic brands.
High stability
A novel robot controller is based on vibration suppression algorithm and coupled with integrated servo drive system that greatly improves the accuracy and speed, providing high stability and high-quality welding results.
Ultra-low spatter
RILAND's in-house developed digital MAG/MIG welders are utilized to achieve an optimal solution of ultra-low-spatter robotic welding process.

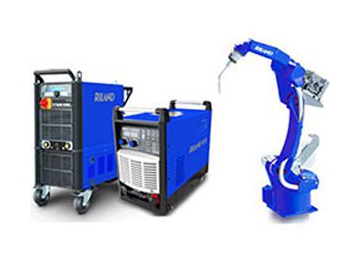

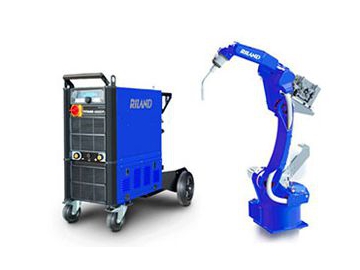

Welding Robot, MAG/MIG Welder and Communication Module

Robotic Welder	Communication Module			Through-Arc Seam Tracking (TAST)
Robotic Welder	Analog	DeviceNet	CAN Open	Through-Arc Seam Tracking (TAST)
CLOOS QINTRON	●	●	●	●
TITANS D/DP	●	●	●	●
TITANS DF	●	●	●	●

Welding Solutions

Industrial Sectors of RWAS Robotic Arc Welding Package

Due to its premium quality and high cost effectiveness, our RWAS robotic arc welding packages have extensive applications across a multitude of industry sectors, including oil pipeline, chemical, automobile, shipbuilding, boiler, power construction, nuclear power, aerospace, military, bridge construction, etc.

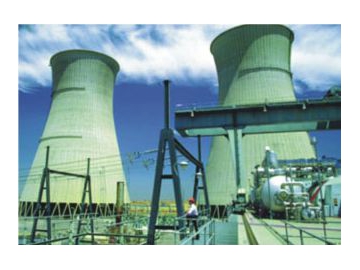

Electric power industry

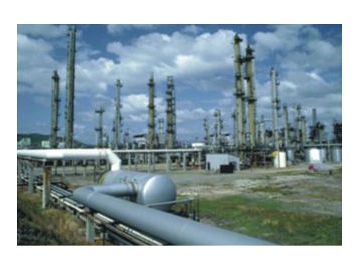

Chemical industry
Shipbuilding industry

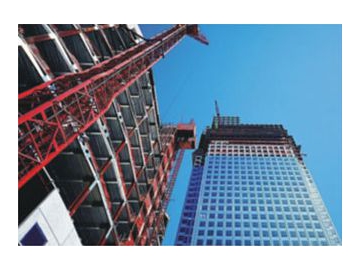

Construction industry
Electric power industry

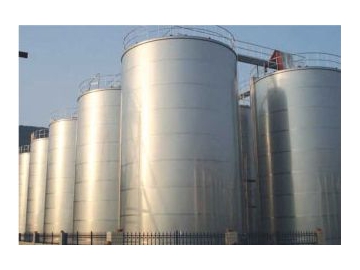

Storage tank industry

Specifications of Arc Welding Robot

Model		ER-1450-H
Payload		6kg
Reach		1450mm
Repeatability		±0.08mm
Mass		155kg
Working range	Axis 1	±170°
	Axis 2	-60°/ 160°
	Axis 3	-155°/ 85°
	Axis 4	±170°
	Axis 5	±180°
	Axis 6	±360°
Max. speed	Axis 1	180°/S
	Axis 2	180°/S
	Axis 3	180°/S
	Axis 4	440°/S
	Axis 5	400°/S
	Axis 6	600°/S
IP rating	IP54
Number of axes	6 axis
Installation method	Floor

Model		ER12-1510
Payload		12kg
Reach		1510mm
Repeatability		±0.05mm
Mass		170kg
Working range	Axis 1	±170°
	Axis 2	-60°/ 160°
	Axis 3	-165°/ 88°
	Axis 4	±180°
	Axis 5	±140°
	Axis 6	±360°
Max. speed	Axis 1	190°/S
	Axis 2	180°/S
	Axis 3	190°/S
	Axis 4	370°/S
	Axis 5	375°/S
	Axis 6	600°/S
IP rating	IP54
Number of axes	6 axis
Installation method	Floor

Model		ER20-1780
Payload		20kg
Reach		1780mm
Repeatability		±0.06mm
Mass		245kg
Working range	Axis 1	±180°
	Axis 2	-95°/ 160°
	Axis 3	-170°/ 80°
	Axis 4	±180°
	Axis 5	±140°
	Axis 6	±360°
Max. speed	Axis 1	185°/S
	Axis 2	185°/S
	Axis 3	190°/S
	Axis 4	355°/S
	Axis 5	360°/S
	Axis 6	585°/S
IP rating	IP54
Number of axes	6 axis
Installation method	Floor

Model		ER20/10-2000-HI
Payload		10kg
Reach		2000mm
Repeatability		±0.07mm
Mass		248kg
Working range	Axis 1	±180°
	Axis 2	-95°/ 160°
	Axis 3	-170°/ 80°
	Axis 4	±180°
	Axis 5	±140°
	Axis 6	±360°
Max. speed	Axis 1	185°/S
	Axis 2	185°/S
	Axis 3	190°/S
	Axis 4	355°/S
	Axis 5	360°/S
	Axis 6	290°/S
IP rating	IP54
Number of axes	6 axis
Installation method	Floor

Digital MAG/MIG Welders

TITANS DP Series

Digital Pulse MAG/MIG Welder

Several options of welding processes, high welding efficiency;
Double Pulse MIG welding function, superior welding quality;
Deeper penetration with reliable root fusion;
Ideal for welding aluminum alloy and medium-thick carbon steel plates;

Built-in welding expert database, abundant parameter combinations;
Precise control of droplet transfer, achieving stable welding quality without spatter generation;
Modular design and robust construction, flexible and easy to use;
Guaranteeing communication compatible with all common welding robot brands;

Model	TITANS 400DP	TITANS 500DP		TITANS 600DP
Welding current range	30A-400A	30A-500A
Duty cycle	100%	100%	60%	100%	60%	40%
Duty cycle	400A	400A	500A	400A	500A	600A
Input voltage	Three phase 380V±15%	Three phase 380V±15%		Three phase 380V±15%
Protection grade	IP23	IP23		IP23
Insulation class	Class H	Class H		Class H

MIG DF Series

Digital MAG/MIG Welder

Fully digital gas shielded welding machine, containing multiple functions;
Multi-process, suitable for working with solid wires and flux-cored wires;
Built-in welding expert database, convenient control with adjustment knob;

Storing and retrieving of welding parameters, wire detecting and retracting functions;
Designed with interface for group control, realizing intelligent workshop management;
Communication guarantees the compatibility with all common welding robot brands;

Model	MIG 350DF	MIG 500DF
Welding current range	30A-350A	30A-500A
Duty cycle	60%	60%
Input voltage	Three phase 380V±15%	Three phase 380V±15%
Protection grade	IP23	IP23
Insulation class	Class H	Class H
