70011 Metric Banjo, DIN 7642

70011 Metric Banjo, DIN 7642
70011 Metric Banjo, DIN 7642
: http://ftth-fiber.com/2-1-2-din-connector.html

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel metric banjo, DIN 7642
  • Carbon steel metric banjo, DIN 7642
70011 Metric Banjo, DIN 7642 List

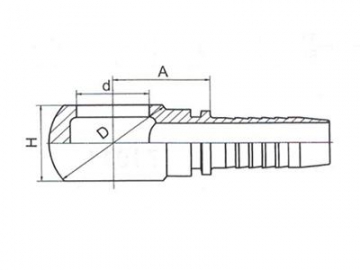

Part No. Bolt Hose Bore Dimensions
DN DASH A d D H
70011-10-04 M10×1 6 04 17 10.1 17 10
70011-12-04 M12×1.5 6 04 20.5 12.1 20 12
70011-12-05 M12×1.5 8 05 20.5 12.1 20 12
70011-12-06 M12×1.5 10 06 20.5 12.1 20 12
70011-14-04 M14×1.5 6 04 19 14.1 24 14
70011-14-05 M14×1.5 8 05 19 14.1 24 14
70011-14-06 M14×1.5 10 06 21 14.1 24 14
70011-16-04 M16×1.5 6 04 20.5 16.1 28 16
70011-16-05 M16×1.5 8 05 20.5 16.1 28 16
70011-16-06 M16×1.5 10 06 20.5 16.1 28 16
70011-18-04 M18×1.5 6 04 23 18.1 32 20
70011-18-05 M18×1.5 8 05 24 18.1 32 20
70011-18-06 M18×1.5 10 06 24 18.1 32 20
70011-18-08 M18×1.5 12 08 24.5 18.1 32 20
70011-22-06 M22×1.5 10 06 28.1 22.1 39 25
70011-22-08 M22×1.5 12 08 28.5 22.1 39 25
70011-22-10 M22×1.5 16 10 27.5 22.1 39 25
70011-26-12 M26×1.5 20 12 33.5 26.2 45 30
70011-30-16 M30×1.5 25 16 37 30.2 54 36
70011-30-20 M30×1.5 32 20 41 30.1 54 36
