Security Screen / Diamond Screen / Diamond Mesh

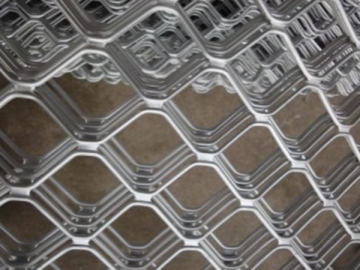

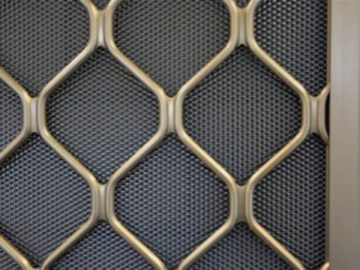

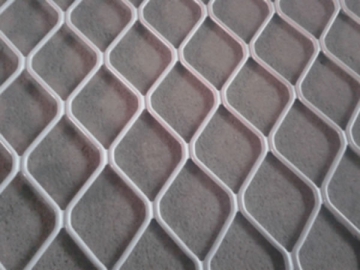

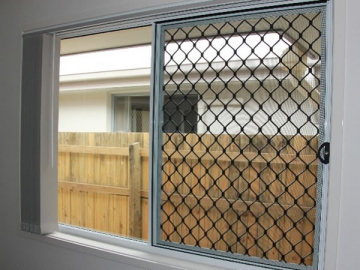

The diamond security grille is designed for security door and window systems, providing an extra barrier against unwanted intrusion. It also allows for uninterrupted airflow and vision.

The 7mm diamond grille style security screens are the most popular security screen solution on the market.

The finished installation is lightweight and secure and can be produced with a variety of colored finishes.

Features
1. Aluminum allow construction
2. Equal cord dimensions
3. Beautiful finish, equal aperture and no faults
4. Ultra-clear visual experience and protective security

Surface Treatment
1. Mill finished or anodized;
2. Powder coated finish with a variety of color choices

Specification List of Single Diamond Grilles
Opening Size mm Thickness
mm
T
Width
mm
W
Length
mm
W
Finish Weight
(kgs/Sheet)
67x84 7 750 2050 Mill or Powder Coated 4.17
67x84 7 750 2450 Mill or Powder Coated 5.11
67x84 7 750 3050 Mill or Powder Coated 6.20
67x84 7 835 2050 Mill or Powder Coated 4.61
67x84 7 920 2050 Mill or Powder Coated 5.11
67x84 7 920 2450 Mill or Powder Coated 6.11
67x84 7 920 3050 Mill or Powder Coated 7.61
67x84 7 1070 2050 Mill or Powder Coated 5.95
67x84 7 1070 2450 Mill or Powder Coated 7.11
67x84 7 1070 3050 Mill or Powder Coated 8.85
67x84 7 1200 2050 Mill or Powder Coated 6.95
67x84 7 1200 2450 Mill or Powder Coated 8.30
67x84 7 1200 3050 Mill or Powder Coated 10.34
Note: Max length:6150mm. All weights shown are theoretical and the actual weight may vary. If the product you require is not listed please contact us
Aluminum Alloy 6063 Chemical Composition %
Fe Cu Mn Mg Cr Si Ti Zn
Max Max Max Min/Max Max Min/Max Max Max
0.35 0.10 0.10 0.45 - 0.90 0.10 0.20 - 0.30 0.10 0.10

Guarantee: Ten years.

Packing: Multiple board case or wooden case.
