Strainers

: http://valvemakerfactory.com/7-valve-strainer.html

As an indispensable pert, strainers are usually installed at the pipe head of reducing valve, air relief valve and other equipment. Valve strainer employs the filter cartridge to block impurities. When cleaning is required, detachable filter cartridges are removed and re-loaded after treatment, being very convenient to use and maintain.

Y-Type Strainer

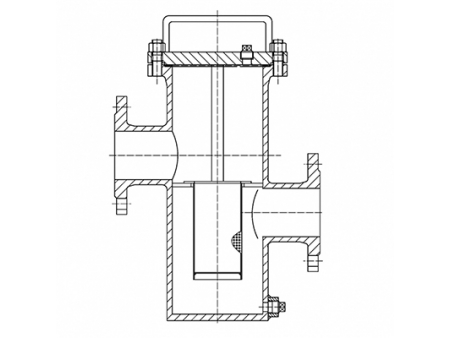

Basket Strainer

Design Features
- High strength, high accuracy and corrosion resistance.
- Easy clean, ensuring the filtering efficiency and long service life.
- Low maintenance costs as well as simple operation and management.
Specification
Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K
Size range: NPS1/2” ~20”, DN15~DN500
Standard connections: flange, threaded, butt weld, socket weld

Samples

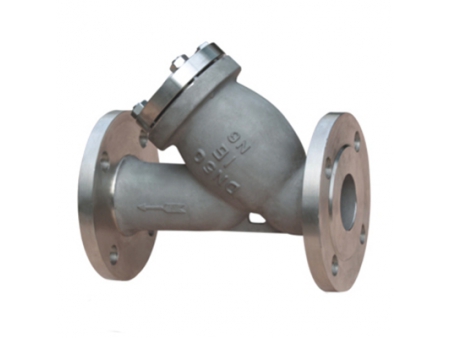

2. Nickel N6 Y-Type Strainer
  Pressure: PN16
  Size: DN50
  Material: Nickel N6
  Standard connection: Flange RF
  Applications: Caustic soda

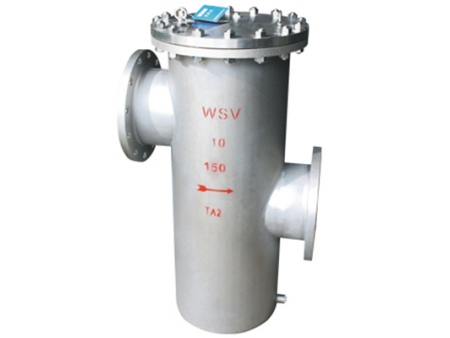

2. Titanium Basket Strainer
  Pressure: 150LB
  Size: 10”
  Material: Titanium Gr.2
  Standard connection: Flange RF
  Applications: Formic acid

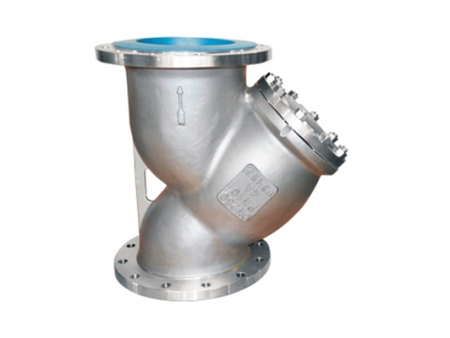

2. Y Strainer
  Pressure: PN10
  Size: DN200
  Material: Duplex steel 2205
  Standard connection: Flange RF
  Applications: Chloromethane

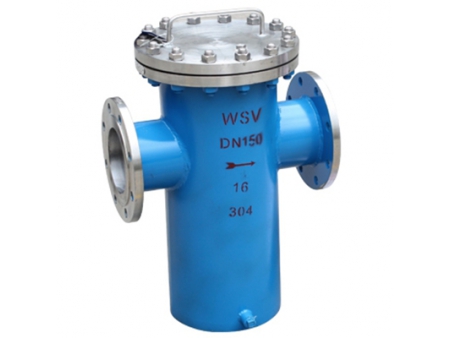

2. SS304 Basket Strainer
  Pressure: PN16
  Size: DN150
  Material: SS304
  Standard connection: Flange RF
  Applications: pesticide and fertilizer industry
