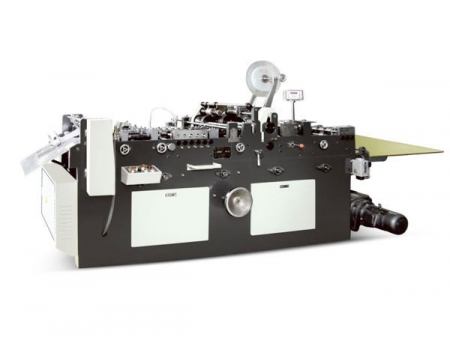

Envelope Window Film Sticking Machine

Envelope Window Film Sticking Machine
Envelope Window Film Sticking Machine
Envelope Window Film Sticking Machine
Envelope Window Film Sticking Machine

Applications of Envelope Window Film Sticking Machine TM-382

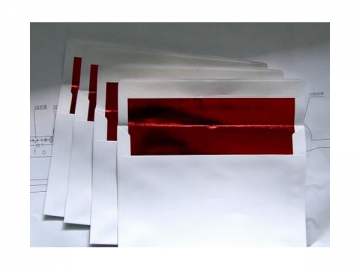

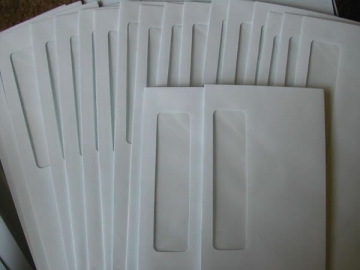

The Envelope Window Film Sticking Machine is fit for sticking plastic film on envelope's window or disc paper bag's window; it can also stick non-woven fabrics or foil paper on envelope paper.

Characteristics of Envelope Window Film Sticking Machine TM-382
It has the following characteristics: Loading paper with no stopping the machine; easily adjusting the film's length by stepless variator.

Technical Parameters of Envelope Window Film Sticking Machine TM-382
Speed 6000-15000pcs/h
Applicable paper 70-150g/m2
Envelope Dimension 120mm×110mm-380mm×480mm
Total power 4.5kW
Weight 1200kg
Dimensions 2880×870×1600mm
    Process sketch map
    Paper feeding
    Positioning
    Glue spraying
    Film sticking
    Finished product collecetion
    Paper feeding
    Positioning
    Glue spraying
    Silicone paper sticking
    Finished product collecetion
