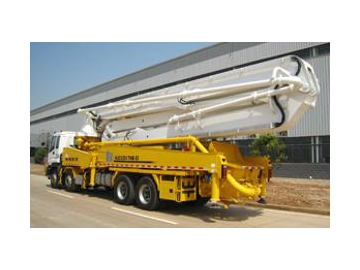

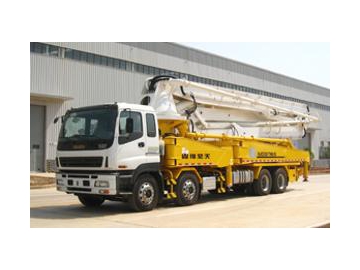

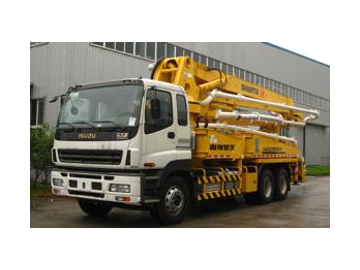

Concrete Pump Truck

: http://janeoocn.com/8a-concrete-pump.html

Features of Concrete Pump Truck
1. Equipped with Japan Isuzu chassis and engine, and the extended cab for the operator to rest;
2. Its key components, such as transfer arm and outrigger, hydraulic system, electronic control system and pumping system are all from Germany;
3. Reasonable structure and easy maintenance.

Application of Concrete Pump Truck
As a key concrete equipment, this concrete pump truck is popularly used for the continuous concrete construction in the electricity, transport, road and urban construction fields.

Technical Parameter of Concrete Pump Truck

Model	Chassis model	Chassis drive mode	Engine model	Remote controller	Tank capacity (L)	Weight (kg)	Max. speed (km/h)	Overall dimension (L x W x H)(mm)
HJC5160THB 26M	Shanqi SX1167DR511	4 x 2	ISME345 30	Japan	200	16000	78	9588 x 2490 x 3688
HJC5270THB 37M	Isuzu CYZ51Q	6 x 4	Isuzu 6WF1A	Germany HBC	700	27000	89	11850 x 2490 x 3940
HJC5320THB 45M	Isuzu CYZ51Q	6 x 4	Isuzu 6WF1A	Germany HBC	740	32000	85	12000 x 2500 x 4000
HJC5320THB 47M	Isuzu CYZ51Q	6 x 4	Isuzu 6WF1A	Germany HBC	740	32300	85	12000 x 2500 x 4000
HJC5390THB 48M	Isuzu CYH51Y	8 x 4	Isuzu 6WF1D	Germany HBC	740	39000	89	12807 x 2490 x 3970
HJC5391THB 49M	Isuzu CYH51Y	8 x 4	Isuzu 6WF1D	Germany HBC	820	39100	89	13949 x 2500 x 4000
HJC5391THB 51M	Isuzu CYH51Y	8 x 4	Isuzu 6WF1D	Germany HBC	820	39100	89	13949 x 2500 x 4000

Note: The above parameters are subject to change without prior notice.
