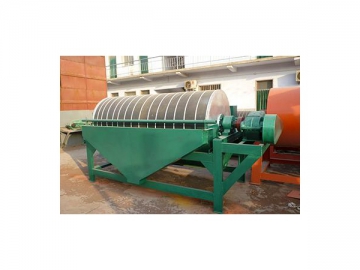

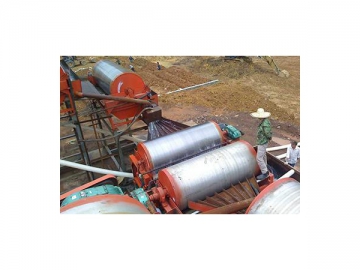

Wet Drum Magnetic Separator
Application
Wet permanent magnetic drum separator concentrates minerals with a strong magnetic force. We offer a variety of different types, including half counter-current type, counter-current type and downstream type according to the different tank structures.
Semi counter-current magnetic separator: suitable for roughing operation and concentration of strongly magnetic mineral with a graininess between 0.5-0mm, and 0.15-0mm. It can be used in conjunction with other equipment.
Counter-current type magnetic separation equipment: suitable for wet roughing operation and scavenging of strongly magnetic mineral with a graininess between 0.6-0mm. It is widely used for heavy medium recovery, non-metal removal of machine iron and more.
Downstream type magnetic separation equipment: suitable for roughing operation and concentration of strongly magnetic mineral with a graininess between 6-0mm. It can be used in tandem with other equipment.
Applicable materials
Iron ore, hematite, pyrrhotite, limonite, roasted ore, ilmenite, magnetite, copper ore, gold ore, coal, quartzite and more
| Models | Specifications | Drum speed (r/min) | Magneticintensity of drum(MPa) | Proper ore concentration (%) | Capacity (t/h) | Motor power(kw) | OverallWeight(t) | |||
| Weight of dry ore (t) | Volume of pulp ore (m3) | |||||||||
| CT-612 | 600 | 1200 | 35 | Magneticintensity is depending on mineral characteristics | 20-30 | 10-20 | 35-55 | 1.5 | 1.28 | |
| CT-618 | 1800 | 35 | 20-30 | 15-30 | 40-65 | 1.5 | 1.30 | | ||
| CT-712 | 750 | 1200 | 35 | 20-30 | 15-30 | 40-65 | 2.2 | 2.00 | | |
| CT-718 | 800 | 35 | 20-30 | 20-40 | 55-110 | 3 | 2.45 | | ||
| CT-918 | 900 | 1800 | 25 | 25-35 | 20-45 | 90-160 | 3 | 2.80 | | |
| CT-924 | 2400 | 25 | 25-35 | 30-55 | 120-190 | 4 | 3.20 | | ||
| CT-1018 | 1050 | 1800 | 20 | 25-35 | 45-60 | 130-200 | 4 | 3.30 | | |
| CT-1021 | 2100 | 20 | 25-35 | 55-80 | 150-240 | 4 | 3.80 | | ||
| CT-1024 | 2400 | 20 | 25-35 | 60-100 | 160-280 | 4 | 4.30 | | ||
| CT-1030 | 3000 | 20 | 25-35 | 80-120 | 240-400 | 4 | 4.80 | | ||
| CT-1218 | 1200 | 1800 | 19 | 25-35 | 60-75 | 160-250 | 4 | 4.70 | | |
| CT-1224 | 2400 | 19 | 25-35 | 70-110 | 220-380 | 4 | 5.20 | | ||
| CT-1230 | 3000 | 19 | 25-35 | 80-140 | 260-460 | 5.5 | 5.70 | | ||
| CT-1236 | 3600 | 19 | 25-35 | 100-160 | 280-540 | 7.5 | 8.00 | | ||
| CT-1245 | 4500 | 19 | 25-35 | 130-190 | 360-640 | 15 | 11.00 | | ||
| CT-1530 | 1500 | 3000 | 16 | 25-35 | 100-180 | 290-480 | 11 | 12.00 | | |
| CT-1545 | 4500 | 16 | 25-35 | 160-220 | 410-650 | 15 | 15.00 | | ||
- The demagnetizing index of the device is no more than 5% in 8 years.
- The separation belt and times of magnetic reversals is increases, thus achieving an effective separation of magnetic minerals and low-magnetic minerals.
- Different series of magnetic separator have different magnetic system design and tank structures based on specific usage and separation conditions.
- The drum is made of non-conductive and stainless steel materials and coated with a wear-resistant rubber.
- It is able to withstand the fluctuation of feed loading capacity, ore graininess and pulp density.
- The equipment is suitable for magnetic separation with a high selection demand of final materials.
- Each series of magnetic separator can be used together or used separately.
