High Penetration Diamond Scribing Wheels

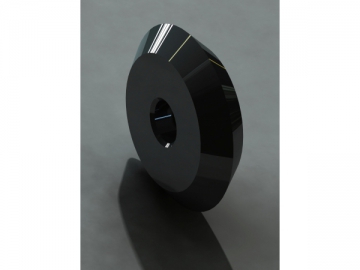

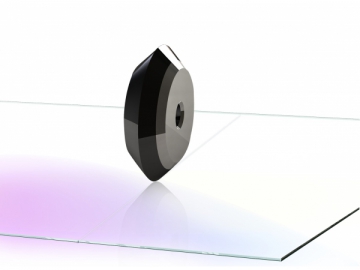

High Penetration Diamond Scribing Wheel
Description
The high penetration diamond scribing wheel uses highquality PCD material of Element Six and Sumitomo. With unique high precision micromachiningtechnology, we make denticles with regular depth and width in the cutting edgeof the wheels, to increase or control the cutting depth of the glass.
Features
1. The denticles are distributed regularly and equally.
2. The high penetration diamond scribing wheelhas a sharp cutting edge and precise cutting angle. The diamond scribing wheel can cut glasseswith vertical and smooth sections and it will not cause chips of glass during cutting process.
3. Compared with the average diamond scribing wheel, the high penetrationdiamond scribing wheel can guarantee vertical cutting sections and deeper cuttingcracks. It cancontrol the cutting depth according to manufacturing need. The cutting depth can reach 50 to 100 percent the depth of the glass.
4. The high penetration diamond scribing wheel causes no fragmentation.
5. The high penetration diamond scribing wheel has long service life.
6. Our high penetration diamond scribing wheel is offered at low price.
7. The diamond scribing wheel can improve production efficiency, reduce wasteand lessen production processes.
Application
High penetration diamond scribing wheel is used in high end LCD production lines,LCD panels, substrate glass, touch screens and sheet glass for cars.
Technical Specifications
| Description | Specification | |||||
| OD(mm) | ID(mm) | T(mm) | V(°) | Teeth(mm) | Depth of Teeth(mm) | |
| High Penetration Diamond Scribing Wheel | 1.2 | 0.5 | 0.40 | 60-163 | 3-360 | 0.0015--0.015 |
| 2 | 0.8 | 0.65 | ||||
| 2.5 | 0.8 | 0.65 | ||||
| 3 | 0.8 | 0.65 | ||||
| 3.2 | 1.2 | 1.00 | ||||
| 4 | 1.3 | 1.00 | ||||
| 5 | 1.4 | 1.10 | ||||
| 6 | 1.5 | 1.10 | ||||
Material
High penetration diamond scribing wheel uses high quality PCD made by Element Six and Sumitomo.
Packaging
Our high penetrationdiamond scribing wheel is packaged in a plastic case.
