Chain Hopper Type Vertical Packaging Machine

: http://shfoodmachine.com

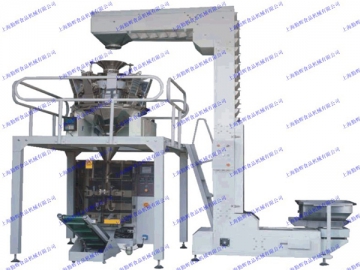

Chain Hopper Type Vertical Packaging Machine

The chain hopper type vertical packaging machine can complete the whole process of filling, bag making, date printing and inflating or exhausting. It is applicable to the packaging of various candies, puffed foods, shrimp chips, peanuts, popcorns, rice, chocolates, melon seeds, and other granular, strip or sheet solid materials. This equipment is controlled by single chip microcomputer and stepper motor, so the length of the bag can be set easily and accurately. In addition, our product is easy to operate and convenient to maintain. A bag-linking device is optional.

Specifications

Width of the Film	120-320mm
Packaging Material	OPP/CPP,OPP/CE,PET/PEA, and other composite materials
Max. Diameter of the Film Roll	300mm
Packaging Speed	35-100bag/min
Size of the Produced Bag	L50-200mm W50-150mm
Measurement Range	50-500ml
Power Supply	220V/50Hz 2KVA
Overall Dimensions	L2860mm W680mm H1650mm
Weight	300kg

The QH-320 chain hopper type vertical packaging machine uses the film with the width of 120 to 320mm. The maximum diameter of the film roll is 300mm. The packaging material is OPP/CPP, OPP/CE, PET/PEA or other composite materials. This equipment can produce 35-100 bags with the length of 50-200mm and the width of 50-150mm in a minute.
