Auto Change Purline Machine

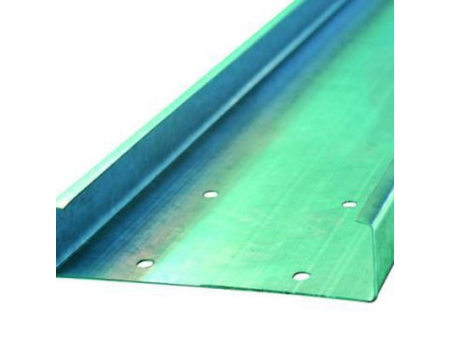

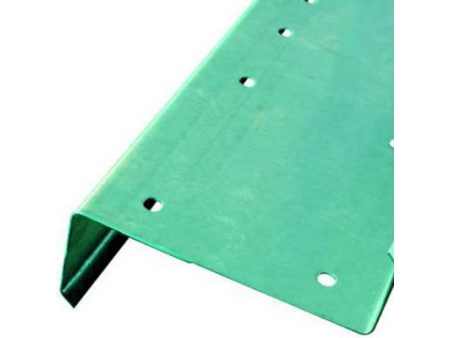

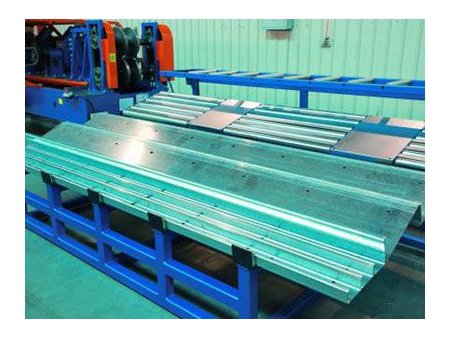

Our C Z purline machine has many automatic functions, such as auto purline change, specification adjustment, cutting to length, punching, cutting etc. It has been awarded many patents of utility model, and is widely used in steel structure buildings.

Main Components

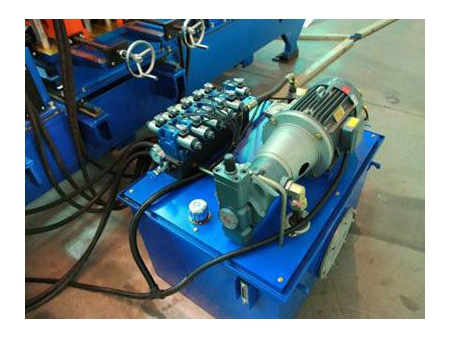

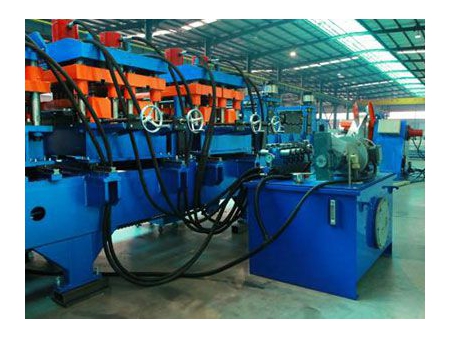

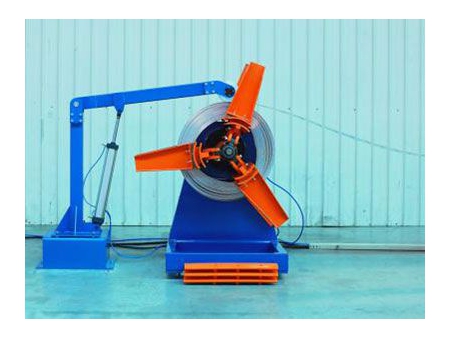

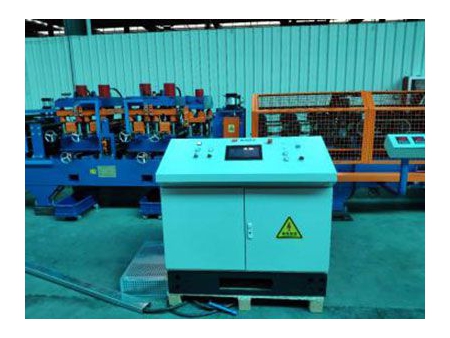

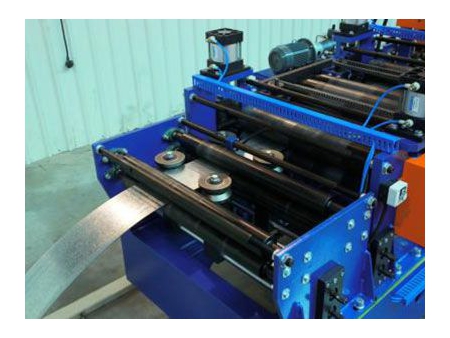

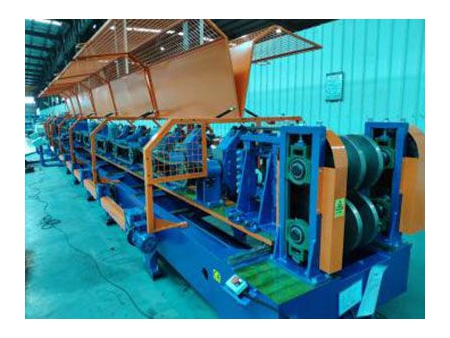

Jinggong auto change purline machine mainly consists of hydraulic decoiler, leveling system, punching equipment, cutting equipment, roll former, material supporter, hydraulic system and automatic control system.

Technical Specifications for Auto Change Purline Machine
Item Parameter
Suitable material Type Ordinary cold, hot rolled plate, galvanized plate
Plate strength ≤350 MPa
Plate thickness 1.6-3.2 mm
Coil inside material 500, 600 mm
Coil weight 5 T
Production spec 100-320 mm
Working speed 25 m/min
Roller material D2, with quenching treatment
Driving mode External chain drive
Operating system Windows2000
Motor power About 65 Kw

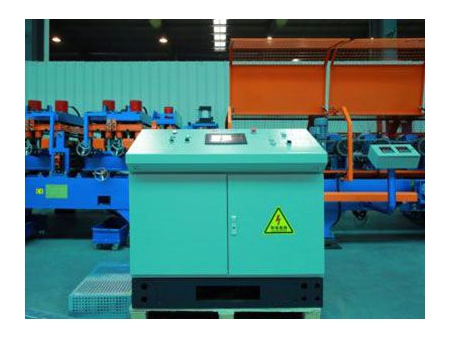

Electric control system Industrial computer PLC frequency control
Outline dimensions (LXWXH) 30X2X1.7 m

Established in 1968, Jinggong Science & Technology is a professional auto change purline machine manufacturer and supplier in China. We have been ISO 9000 certified and our products have received the CE certificate. In addition to purline machine, we also provide other construction materials machinery, such as roll forming machine, steel tile forming machine, and guardrail forming machine etc. Thank you for visiting our website! If you have any queries, please feel free to contact us.
