LED Light Bulb Assembly Production Line

: http://automated-system.com/led-light-bulb-assembly-production-line.html

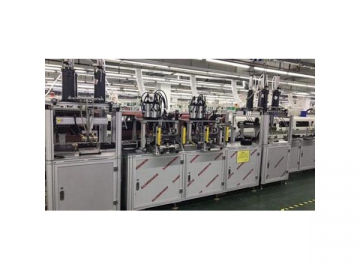

The LED light bulb assembly production line is specially designed and developed for assembling A19 LED bulb. The system has stable performance and high output of 1500pcs/h, which can help you improve work efficiency and save you money.

The automatic assembly line of LED bulb adopts segmented structure. The front section and the rear section with elevator and conveyor form a circular conveying system. The middle section adopts rotary table, which can effectively save space and realize efficient semi-automatic production.

Production process

Technical parameters

Overall dimension	L22500W2300H1600mm
Model	A19 light bulb
Operating system	Windows XP system
Display	LED display
Input device	Mouse, keyboard
Design capacity	1800pcs/h
Actual capacity	1500pcs/h
Rated voltage	AC220V； 50HZ
Rated power	13.4Kw
Rated pressure	0.5-0.7MPa
Transmission method	Chain, belt, cylinder
Gross weight	5200Kg
Dispensing accuracy	±0.2g
Dispensing cartridge scale	Standard 2600cc

Note: our company LEADY can customize the automatic assembly line of LED bulb according to your requirements, such as size, function, production speed, etc.
