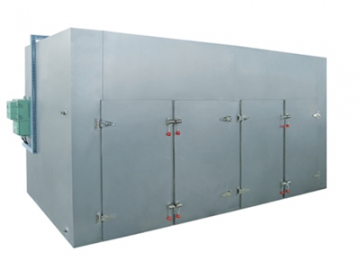

Hot Air Circulation Pharmaceutical Oven
The pharmaceutical oven is widely used for heating, drying, and sterilizing powders, granules, or herbs in R&D, mass production, quality control, etc.
Features
Most of the hot air is circulated in the oven, bringing high thermal efficiency and energy saving. The hot air circulation pharmaceutical oven is equipped with adjustable air supply system to evenly dry the materials by forced-air convection. The whole machine features stable operation, low noise, self-control temperature, easy maintenance, and wide applications.
Technical Specifications
| Model | RXH-B-0 | RXH-B-I | RXH-B-II | RXH-B-III | RXH-B-IV |
| Dry Amount Each（kg） | 60 | 120 | 240 | 360 | 480 |
| Matched Power（kw） | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Steam Expend（kg/h） | 6 | 20 | 45 | 70 | 90 |
| Heat Dispelling Area（m²） | 5 | 20 | 40 | 80 | 100 |
| Air Flow（m³/h） | 3450 | 3450 | 6900 | 10350 | 13800 |
| Diff In Up Down Temp℃ | ±2 | ±2 | ±2 | ±2 | ±2 |
| Collo-cate Tray | 24 | 48 | 96 | 144 | 192 |
| Overall Dimensions（L×W×H）（mm） | 1370*1200*2200 | 2300*1200*2200 | 2300*2210*2200 | 3300*2210*2200 | 4460*2210*2200 |
| Weight（kg） | 800 | 1500 | 1800 | 2200 | 2800 |
| Collo-cate Pushcart | 1 | 2 | 4 | 6 | 8 |
