Profiled Steel Framing
Request a Quote
Adopting cold roll forming equipment for extrusion of galvanized steel and stainless steel, we can produce various profiled steel framing products, such as W-shaped channels and ‘几’-shaped channels.As a professional steel frame building materials provider, we can provide customization service according to your drawings and specific size requirements.
Optional materials
- Q195 hot dip galvanized steel
- Q235 hot dip galvanized steel
- 201 stainless steel
- 304 stainless steel
- Other materials can be designated
What we have produced
The followings shown are our produced channels according to customers’ requirements. If they just meet your needs, welcome to consult us.
| Model | Cross-section dimension (mm) | Thickness (mm) | Length(mm) | |||
| W1 | W2 | H1 | H2 | |||
| W-shaped channel | 50～300 | 25 | 40 | 15～30 | 0.5～1.2 | 3000/4000 |

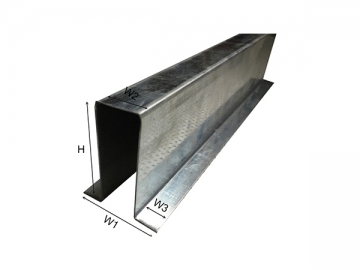

| Model | Cross-section dimension (mm) | Thickness (mm) | Length (mm) | |||
| W1 | W2 | W3 | H | |||
| shaped channel | 44～110 | 20～70 | 12～20 | 15～130 | 0.5～1.2 | 3000/4000 |
