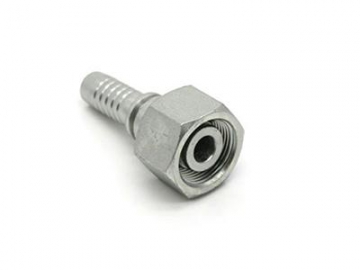

20411 Metric Straight Female 24° Cone Fittings with O Ring, Light Duty Series
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric straight female 24° cone fittings with O ring, light duty series
- Carbon steel metric straight female 24° cone fittings with O ring, light duty series

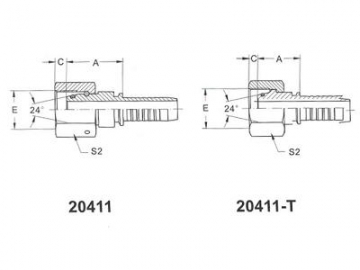

| Part No. | Thread | Hose Bore | Tube O.D. | O-ring | Dimensions | ||||
| E | DN | DASH | A | C | S2 | ||||
| 20411-12-04 | M12×1 5 | 6 | 04 | 6 | O04.5 ×1.5 | 26 | 1 | 17 | |
| 20411-14-04 | M14×1.5 | 6 | 04 | 8 | O06.5×1.5 | 27.5 | 2 | 19 | |
| 20411-16-05 | M16×1.5 | 8 | 05 | 10 | O08.0 ×1 5 | 28 | 2 | 22 | |
| 20411-18-06 | M18×1.5 | 10 | 06 | 12 | O10.0×1.5 | 29 | 2.5 | 24 | |
| 20411-22-08 | M22×1.5 | 12 | 08 | 15 | O12.0×2.0 | 32 | 2.5 | 27 | |
| 20411-26-10 | M26×1.5 | 16 | 10 | 18 | O15.0×2.0 | 35 | 2.5 | 32 | |
| 20411-27-10T | M27×1.5 | 16 | 10 | 18 | O15.0 ×2.0 | 28 | 2.5 | 32 | |
| 20411-30-10T | M30×2 | 16 | 10 | 22 | O20.0 ×2.0 | 35 | 4 | 36 | |
| 20411-30-12 | M30×2 | 20 | 12 | 22 | O20.0×2.0 | 38 | 4 | 36 | |
| 20411-36-14T | M36×2 | 22 | 14 | 28 | O26.0×2.0 | 36 | 4 | 41 | |
| 20411-45-16T | M45×2 | 25 | 16 | 35 | O32.0 ×2.5 | 41 | 5 | 55 | |
| 20411-45-20T | M45×2 | 32 | 20 | 35 | O32.0 ×2.5 | 42 | 5 | 55 | |
| 20411-52-24T | M52×2 | 40 | 24 | 42 | O38.0×2.5 | 44 | 5.5 | 60 | |
