20511T Metric Female 24° Cone Fittings with O Ring, Heavy Duty Series

20511T Metric Female 24° Cone Fittings with O Ring, Heavy Duty Series
20511T Metric Female 24° Cone Fittings with O Ring, Heavy Duty Series
: http://pipefittingsltd.com/1-4-heavy-duty-pipe-fittings.html

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel metric female 24°cone fittings with O ring, heavy duty series
  • Carbon steel metric female 24°cone fittings with O ring, heavy duty series
20511T Metric Female 24° Cone Fittings with O Ring, Heavy Duty Series List

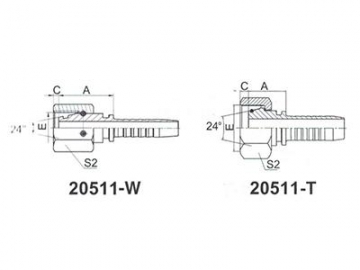

Part No. Thread Hose Bore Tube O.D. O-ring Dimensions
E DN DASH A C S2
20511-14-04 M14×1.5 6 04 6 O04.5 ×1.5 28.5 1.1 19
20511-16-05 M16×1.5 8 05 8 O06.5 ×1.5 29 1.5 22
20511-18-06 M18×1.5 10 06 10 O08.0 ×1.5 29 2 24
20511-20-08 M20×1.5 12 08 12 O10.0 ×1.5 31.5 2.5 27
20511-22-08 M22×1.5 12 08 14 O11.0×2.0 31.5 2.5 27
20511-24-08T M24×1.5 12 08 16 O13.0 ×2.0 30 3 30
20511-30-10T M30×2 16 10 20 O16.3 ×2.4 36 3 36
20511-30-12 M30×2 20 12 20 O16.3 ×2.4 39 3 36
20511-36-12T M36×2 20 12 25 O20.3 ×2.4 36 3 41
20511-36-14T M36×2 22 14 25 O20.3 ×2.4 36 3 41
20511-42-12T M42×2 20 12 30 O25.3 ×2.4 40 5 50
20511-42-16T M42×2 25 16 30 O25.3 ×2.4 41 5 50
20511-52-20T M52×2 32 20 38 O33.3 ×2.4 44 6.5 60
20511-52-24T M52×2 40 24 38 O33.3 ×2.4 44 6.5 60
Related
hose end, hose fittings, carbon steel fittings, stainless steel fittings
