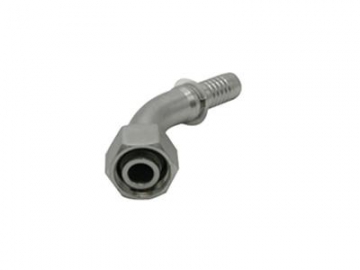

20441 Metric 45° Elbow Female 24° Cone Fittings with O Ring, Light Duty Series

20441 Metric 45° Elbow Female 24° Cone Fittings with O Ring, Light Duty Series
20441 Metric 45° Elbow Female 24° Cone Fittings with O Ring, Light Duty Series
: http://lede-fittings.com/1-9-3-grooved-45-elbow/index.html

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel metric 45° elbow female 24° cone fittings with O ring, light duty series
  • Carbon steel metric 45° elbow female 24° cone fittings with O ring, light duty series
20441 Metric 45° Elbow Female 24° Cone Fittings with O Ring, Light Duty Series List
Part No. Thread Hose Bore Tube O.D. O-ring Dimensions
E DN DASH A C H S2
20441-14-04 M14 ×1.5 6 04 8 O06.5×1 5 49 2 27 19
20441-16-05 M16×1.5 8 05 10 O080 ×1.5 51.5 2 28.2 22
20441-18-06 M18 ×1.5 10 06 12 O10.0 ×1.5 54.2 2.5 29.9 24
20441-22-08 M22 ×1.5 12 08 15 O12.0×2.0 68.1 2.5 33.2 27
20441-26-10 M26×1.5 16 10 18 O15.0×2.0 80.7 2.5 35.9 32
20441-27-10T M27×1 5 16 10 18 O15.0 ×2.0 72 2.5 27.7 32
20441-30-10T M30×2 16 10 22 O20.0× 2.0 75 1 4 30.3 36
20441-30-12 M30×2 20 12 22 O20.0 ×2.0 89.1 4 41.7 36
20441-36-12T M36×2 20 12 28 O26.0× 2.0 82 4 33.9 41
20441-36-14T M36×2 22 14 28 O26.0 ×2.0 83.7 4 33.3 41
20441-45-20T M45×2 32 20 35 O32.0×2.5 99.6 5 40.8 55
20441-52-24T M52×2 40 24 42 O38.0×2.5 117 5.5 45.8 60
