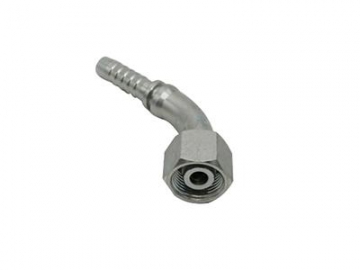

20543 Metric 45° Elbow Female 24° Cone Fittings with O Ring, Heavy Duty Series

20543 Metric 45° Elbow Female 24° Cone Fittings with O Ring, Heavy Duty Series
: http://pipefittingsltd.com/1-4-heavy-duty-pipe-fittings.html

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel Metric 45° elbow female 24° cone fittings with O ring, heavy duty series
  • Carbon steel Metric 45° elbow female 24° cone fittings with O ring, heavy duty series
20543 Metric 45° Elbow Female 24° Cone Fittings with O Ring, Heavy Duty Series List
Part No. Thread Hose Bore Tube O.D. O-ring Dimensions
E DN DASH A C H S2
20543-36-12T M36×2 20 12 25 O20.3×2.4 89.4 3.5 33 46
20543-42-16W M42×2 25 16 30 O25.3×2.4 102.3 3.9 35.9 50
20543-52-20T M52×2 32 20 38 O33.3×2.4 114.5 4.5 39.4 60
Related
hose end, hose fittings, carbon steel fittings, stainless steel fittings
Related products

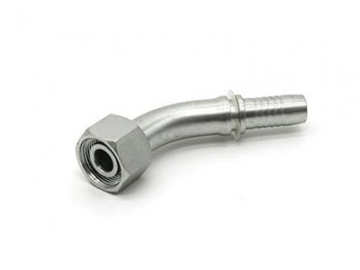

20541T Metric 45° Elbow Female 24° Cone Fittings with O Ring, Heavy Duty Series
20541T Metric 45° Elbow Female 24° Cone Fittings with O Ring, Heavy Duty Series
20441 Metric 45° Elbow Female 24° Cone Fittings with O Ring, Light Duty Series
20441 Metric 45° Elbow Female 24° Cone Fittings with O Ring, Light Duty Series
20593 Metric 90° Elbow Female 24° Cone Fittings with O Ring, Heavy Duty Series
20593 Metric 90° Elbow Female 24° Cone Fittings with O Ring, Heavy Duty Series

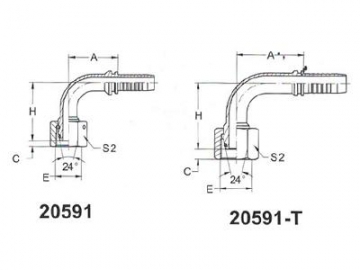

20591T Metric 90° Elbow Female 24° Cone Fittings with O Ring, Heavy Duty Series
