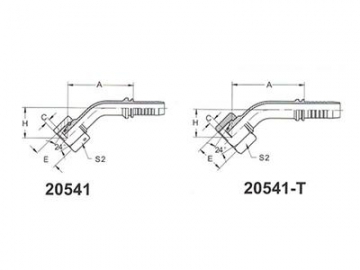

20541T Metric 45° Elbow Female 24° Cone Fittings with O Ring, Heavy Duty Series
Application: for use with hydraulic braided hoses
Materials:- Stainless steel Metric 45° elbow female 24° cone fittings with O ring, heavy duty series
- Carbon steel Metric 45° elbow female 24° cone fittings with O ring, heavy duty series
| Part No. | Thread | Hose Bore | Tube O.D. | O-ring | Dimensions | |||||
| E | DN | DASH | A | C | H | S2 | ||||
| 20541-14-04 | M14 ×1.5 | 6 | 04 | 6 | O04.5 ×1.5 | 50.1 | 1.1 | 28 | 19 | |
| 20541-16-05 | M16 ×1.5 | 8 | 05 | 8 | O06.5×1.5 | 52.2 | 1.5 | 28.9 | 22 | |
| 20541-18-06 | M18 ×1.5 | 10 | 06 | 10 | O08.0×1.5 | 54.3 | 2 | 29.6 | 24 | |
| 20541-20-08 | M20 ×1.5 | 12 | 08 | 12 | O10.0 ×1.5 | 67.8 | 2.5 | 32.8 | 27 | |
| 20541-22-08 | M22 ×1.5 | 12 | 08 | 14 | O11.0 ×2.0 | 68.1 | 2.5 | 33.2 | 27 | |
| 20541-24-08T | M24 ×1.5 | 12 | 08 | 16 | O13.0 ×2.0 | 62.5 | 3 | 27.5 | 30 | |
| 20541-30-10T | M30 ×2 | 16 | 10 | 20 | O16.3 ×2.4 | 75.8 | 3 | 31 | 36 | |
| 20541-30-12 | M30 ×2 | 20 | 12 | 20 | O16.3×2.4 | 90.5 | 3 | 42.4 | 36 | |
| 20541-36-12T | M36 ×2 | 20 | 12 | 25 | O20.3 ×2.4 | 82.7 | 3 | 34.6 | 41 | |
| 20541-36-14T | M36 ×2 | 22 | 14 | 25 | O20.3 ×2.4 | 84.4 | 3 | 34 | 41 | |
| 20541-42-16T | M42 ×2 | 25 | 16 | 30 | O25.3 ×2.4 | 92.3 | 5 | 36.8 | 50 | |
| 20541-52-20T | M52 ×2 | 32 | 20 | 38 | O33.3 ×2.4 | 103.4 | 6.5 | 41.2 | 60 | |
| 20541-52-24T | M52 ×2 | 40 | 24 | 38 | O33.3 ×2.4 | 115.9 | 6.5 | 45.1 | 60 | |
