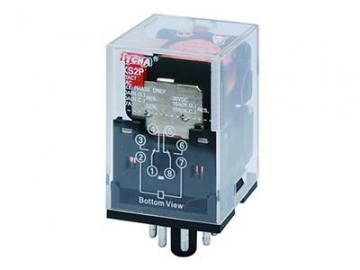

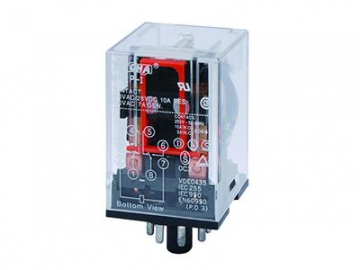

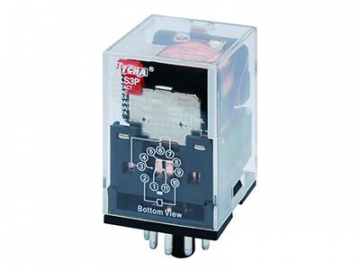

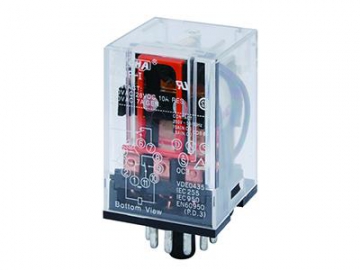

MK Series General Purpose Relay
Features
- The switching current of the contact reaches up to 10A
- Working lifetime is around 100,000 operations
- Two and three sets of Form C contacts
- Standard tube pin
- Optional sockets
- Built-in LED
Contact parameters
| Contact ratings | 2Z, 2H, 2D | 3Z, 3H, 3D |
| Contact resistance | 100mΩ (1A 6VDC) | 100mΩ (1A 6VDC) |
| Contact capacity | 10A | 10A |
| 250VAC 30VDC | 250VAC 30VDC |
Parameters
| Insulation resistance | 500MΩ (500VDC) |
| Dielectric strength | BCC≥1500VAC 1min |
| BOC≥1000VAC 1min | |
| Operating time | 25ms/15ms |
Specifications
| Model | Coil | Electrical life | Mechanical life | Operating temperature | Weight | Mounting methods | |
| Rated voltage | Rated power | ||||||
| MK2P-I | DC 3 to 220V AC 6 to 380V | DC≤1.6W AC≤2.8VA | 105 OPS | 107 OPS | -40℃~65℃ | ≤78g | outlet |
| MK3P-I | DC 3 to 220V AC 6 to 380V | DC≤1.6W AC≤2.8VA | 105 OPS | 107 OPS | -40℃~65℃ | ≤78g | |
| MKS2P | DC 3 to 220V AC 6 to 380V | DC≤1.6W AC≤2.8VA | 105 OPS | 107 OPS | -40℃~65℃ | ≤78g | |
| MKS3P | DC 3 to 220V AC 6 to 380V | DC≤1.6W AC≤2.8VA | 105 OPS | 107 OPS | -40℃~65℃ | ≤78g | |
Outline dimension, wiring diagram, PCB layout
