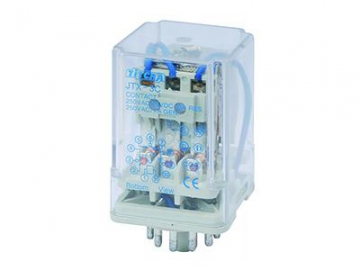

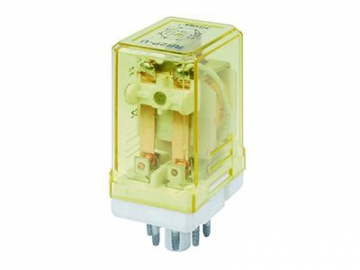

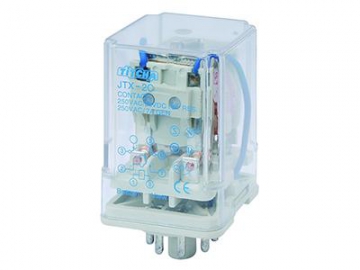

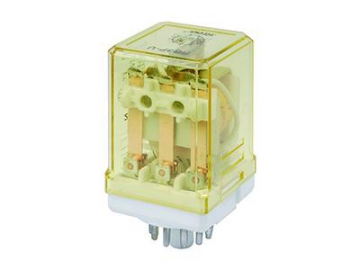

RR2P/RR3P/JQX-10 Series General Purpose Relay
Features
- Switching current of the contact reaches up to 10A
- Electrical life is at least 100,000 operations
- Two and three sets of Form C contacts
- Standard tube pin
- Optional sockets
Contact parameters
| Contact ratings | 2Z | 3Z |
| Contact resistance | 100mΩ (1A 6VDC) | 100mΩ (1A 6VDC) |
| Contact capacity | 10A | 10A |
| 250VAC 30VDC | 250VAC 30VDC |
Parameters
| Insulation resistance | 500MΩ (500VDC) |
| Dielectric strength | BCC≥1500VAC 1min |
| BOC≥1000VAC 1min | |
| Operating time | 25ms/15ms |
Specifications
| Model | Coil | Electrical life | Mechanical life | Operating temperature | Weight | Mounting methods | |
| Rated voltage | Rated power | ||||||
| RR2P-U | DC 6 to 220V AC 6 to 380V | DC≤1.6W AC≤2.8VA | 105 OPS | 107 OPS | -40℃~70℃ | ≤74g | outlet |
| RR3P-U | DC 6 to 220V AC 6 to 380V | DC≤1.6W AC≤2.8VA | 105 OPS | 107 OPS | -40℃~70℃ | ≤80g | |
| JQX-10-2C (JTX) | DC 6 to 220V AC 6 to 380V | DC≤1.6W AC≤2.8VA | 105 OPS | 107 OPS | -40℃~70℃ | ≤68g | |
| JQX-10-3C (JTX) | DC 6 to 220V AC 6 to 380V | DC≤1.6W AC≤2.8VA | 105 OPS | 107 OPS | -40℃~70℃ | ≤69g | |
Outline dimension, bottom View
