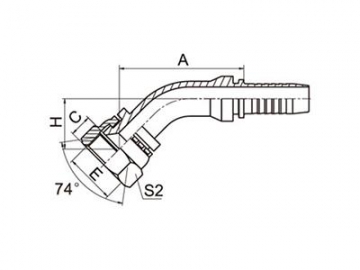

20741 Metric 45° Elbow Female Fittings, 74° Cone Seat
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric 45° elbow female fittings, 74° cone seat
- Carbon steel metric 45° elbow female fittings, 74° cone seat
| Part No. | Thread | Hose Bore | Dimensions | |||||
| E | DN | DASH | A | C | H | S2 | ||
| 20741-14-04 | M14×1.5 | 6 | 04 | 40.5 | 8.5 | 18.5 | 19 | |
| 20741-16-05 | M16×1.5 | 8 | 05 | 44.4 | 8 | 20 | 22 | |
| 20741-18-06 | M18 ×1.5 | 10 | 06 | 45.7 | 10 | 21.4 | 24 | |
| 20741-22-08 | M22×1.5 | 12 | 08 | 58.9 | 10 | 24 | 27 | |
| 20741-27-10 | M27×1.5 | 16 | 10 | 71.2 | 11 | 26.4 | 32 | |
| 20741-30-12 | M30×1.5 | 20 | 12 | 78.1 | 11 | 30 | 36 | |
| 20741-33-12 | M33×2 | 20 | 12 | 77.4 | 13 | 30 | 41 | |
| 20741-36-14 | M36×2 | 22 | 14 | 79.8 | 14 | 29.6 | 41 | |
| 20741-36-16 | M36×2 | 25 | 16 | 85.7 | 14 | 31 .5 | 41 | |
| 20741-39-16 | M39×2 | 25 | 16 | 86.1 | 14 | 31 .8 | 46 | |
| 20741-45-20W | M45×2 | 32 | 20 | 97 | 15 | 36.2 | 55 | |
| 20741-52-24W | M52×2 | 40 | 24 | 112.9 | 17 | 40.9 | 60 | |
