26741(W) JIC 45° Elbow Female 74° Cone Fittings, J514
Application: for use with hydraulic braided hoses
Materials:- Stainless steel JIC 45° elbow female 74° cone fittings, J514
- Carbon steel JIC 45° elbow female 74° cone fittings, J514

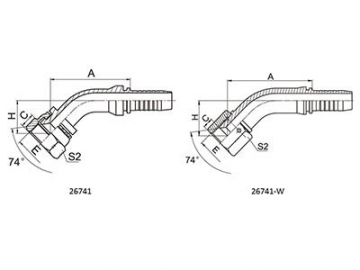

| Part No. | Thread | Hose Bore | Dimensions | |||||
| E | DN | DASH | A | C | H | S2 | ||
| 26741-04-04 | 7/16''×20 | 6 | 04 | 40.2 | 9 | 18.1 | 15 | |
| 26741-05-05 | 1/2''×20 | 8 | 05 | 42.7 | 9.5 | 19.3 | 17 | |
| 26741-06-05 | 9/16''×18 | 8 | 05 | 42.7 | 10.5 | 19.3 | 19 | |
| 26741-06-06 | 9/16''×18 | 10 | 06 | 44.3 | 10.5 | 20 | 19 | |
| 26741-08-08 | 3/4''×16 | 12 | 08 | 58.6 | 11 | 23.5 | 24 | |
| 26741-10-10 | 7/8''×14 | 16 | 10 | 70.1 | 13 | 25.3 | 27 | |
| 26741-12-12 | 1.1/16''×12 | 20 | 12 | 77.4 | 15 | 30 | 32 | |
| 26741-14-12 | 1.3/16''×12 | 20 | 12 | 77.4 | 15 | 30 | 36 | |
| 26741-16-16 | 1.5/16''×12 | 25 | 16 | 85.7 | 16 | 31.5 | 41 | |
| 26741-20-20W | 1.5/8''×12 | 32 | 20 | 96.6 | 17 | 35.9 | 50 | |
| 26741-24-24W | 1.7/8''×12 | 40 | 24 | 111.8 | 20 | 44.1 | 55 | |
| 26741-32-32W | 2.1/2''×12 | 50 | 32 | 135.9 | 23.5 | 51.6 | 75 | |
