20791 Metric 90° Elbow Female Fittings, 74° Cone Seat

20791 Metric 90° Elbow Female Fittings, 74° Cone Seat
20791 Metric 90° Elbow Female Fittings, 74° Cone Seat
: http://lede-fittings.com/1-9-5-grooved-90-reducing-elbow/index.html

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel metric 90° elbow female fittings, 74° cone seat
  • Carbon steel metric 90° elbow female fittings, 74° cone seat

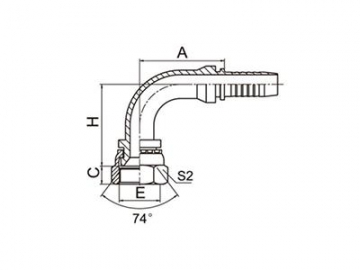

20791 Metric 90° Elbow Female Fittings, 74° Cone Seat List
Part No. Thread Hose Bore Dimensions
E DN DASH A C H S2
20791-12-04 M12 ×1.5 6 04 30 10 33.5 17
20791-14-04 M14×1.5 6 04 30 8.5 34 19
20791-16-05 M16×1 5 8 05 34 8 38 22
20791-18-06 M18×1.5 10 06 35 3 10 41 .3 24
20791-22-08 M22×1.5 12 08 41 10 48 27
20791-27-10 M27×1.5 16 10 56.5 11 54 32
20791-30-12 M30×1.5 20 12 66.2 11 63.5 36
20791-33-12 M33×2 20 12 65.5 13 63.5 41
20791-36-14 M36×2 22 14 71.2 14 64 .5 41
20791-39-16 M39×2 25 16 76.7 14 70.5 46
20791-45-20W M45×2 32 20 91.5 15 83 55
20791-52-24W M52×2 40 24 110.7 17 96.5 60
Related
hose end, hose fittings, carbon steel fittings, stainless steel fittings
Related products

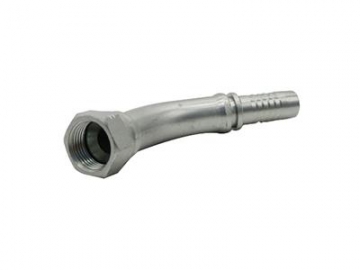

20741 Metric 45° Elbow Female Fittings, 74° Cone Seat
20741 Metric 45° Elbow Female Fittings, 74° Cone Seat
20691 90° Elbow Male Metric Fittings, 60° Cone Seat
20691 90° Elbow Male Metric Fittings, 60° Cone Seat

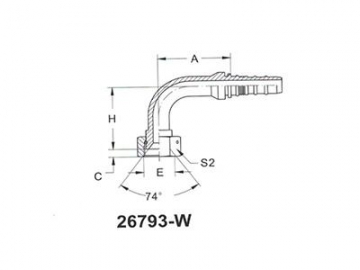

26793-W JIC 90° Elbow Female 74° Cone Fittings
26793-W JIC 90° Elbow Female 74° Cone Fittings

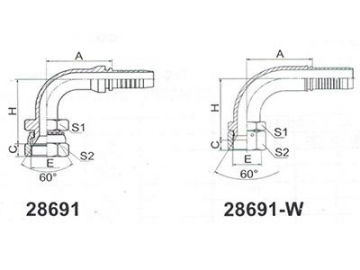

28691 Japanese Metric 90° Elbow Male Fittings, 60° Cone Seat
