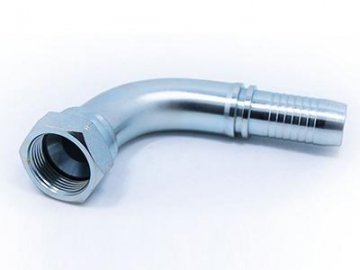

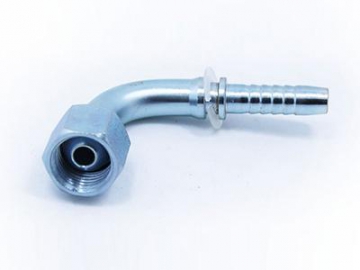

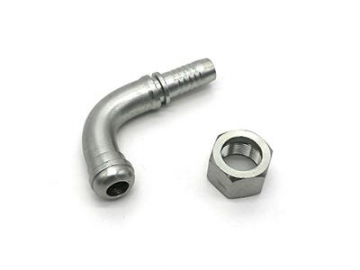

20191 Metric 90° Elbow Female Multi Seal Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric 90° elbow female multi seal fittings
- Carbon steel metric 90° elbow female multi seal fittings
| Part No. | Thread | Hose Bore | Dimensions | |||||
| E | DN | DASH | A | C | H | S2 | ||
| 20191-16-05 | M16 ×1.5 | 8 | 05 | 33 | 4.5 | 41 .5 | 22 | |
| 20191-18-06 | M18 ×1.5 | 10 | 06 | 35.3 | 4 | 45.3 | 24 | |
| 20191-20-06T | M20 ×1.5 | 10 | 06 | 35.3 | 5.5 | 44.8 | 24 | |
| 20191-22-08 | M22 ×1.5 | 12 | 08 | 41 | 5 | 52.5 | 27 | |
| 20191-24-08T | M24 ×1.5 | 12 | 08 | 41 | 5.5 | 51 | 30 | |
| 20191-27-10T | M27 ×2 | 16 | 10 | 56 | 5.5 | 55.5 | 32 | |
| 20191-30-12 | M30 ×2 | 20 | 12 | 67.5 | 6 | 68.5 | 36 | |
| 2019 1-36-14T | M36 ×2 | 22 | 14 | 71 .2 | 7 | 69 | 41 | |
| 20191-39-16T | M39 ×2 | 25 | 16 | 76.7 | 7 | 73.5 | 46 | |
| 20191-45-20T | M45 ×2 | 32 | 20 | 91.5 | 8.5 | 85 | 55 | |
| 20191-52-24T | M52 ×2 | 40 | 24 | 109.4 | 9 | 100 | 60 | |
| 20191-64-32T | M64 ×2 | 50 | 32 | 131 .75 | 14 | 122.3 | 75 | |
