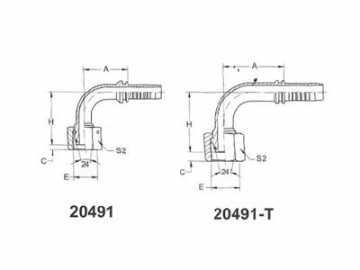

20491 Metric 90° Elbow Female 24° Cone Fittings with O Ring, Light Duty Series
Application: for use with hydraulic braided hoses
Materials:- Stainless steel metric 90° elbow female 24° cone fittings with O ring, light duty series
- Carbon steel metric 90° elbow female 24° cone fittings with O ring, light duty series
| Part No. | Thread | Hose Bore | Tube O.D. | O-ring | Dimensions | |||||
| E | DN | DASH | A | C | H | S2 | ||||
| 20491-12-04 | M12×1.5 | 6 | 04 | 6 | O04.5 ×1.5 | 30 | 1 | 44.5 | 17 | |
| 20491-14-04 | M14×1.5 | 6 | 04 | 8 | O06.5 ×1.5 | 30 | 2 | 46 | 19 | |
| 20491-16-05 | M16×1.5 | 8 | 05 | 10 | O08.0 ×1.5 | 33 | 2 | 49.5 | 22 | |
| 20491-18-06 | M18×1.5 | 10 | 06 | 12 | O10.0 ×1.5 | 35.3 | 2.5 | 53.3 | 24 | |
| 20491-22-08 | M22×1.5 | 12 | 08 | 15 | O12.0 ×2.0 | 41 | 2.5 | 61 | 27 | |
| 20491-26-10 | M26×1.5 | 16 | 10 | 18 | O15.0×2.0 | 56.5 | 2.5 | 67 .5 | 32 | |
| 20491-27-10T | M27×1.5 | 16 | 10 | 18 | O15.0×2.0 | 56.5 | 2.5 | 67.5 | 32 | |
| 20491-30-10T | M30×2 | 16 | 10 | 22 | O20.0×2.0 | 56.5 | 4 | 57.2 | 36 | |
| 20491-30-12 | M30×2 | 20 | 12 | 22 | O20.0 ×2.0 | 65.5 | 4 | 80 | 36 | |
| 20491-36-12T | M36×2 | 20 | 12 | 28 | O26.0 ×2.0 | 65.5 | 4 | 69 | 41 | |
| 20491-36-14T | M36×2 | 22 | 14 | 28 | O26.0 ×2.0 | 71.2 | 4 | 70 | 41 | |
| 20491-45-16T | M45×2 | 25 | 16 | 35 | O32.0×2.5 | 76.7 | 5 | 75 | 55 | |
| 20491-45-20T | M45×2 | 32 | 20 | 35 | O32.0 ×2.5 | 91.5 | 5 | 88.5 | 55 | |
| 20491-52-24T | M52×2 | 40 | 24 | 42 | O38.0×2.5 | 109.4 | 5.5 | 104 | 60 | |
