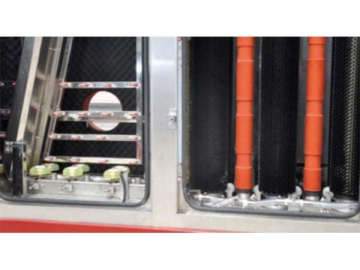

This high speed CNC insulating glass equipment adopts an exterior pressing method. It needs only 25s to transition from glass cleaning to glass pressing. The whole production line is under the control of a PLC control system. The 3^rd stage can automatically implement the storage function of single-glass or double glazing glass according to the glass size, increasing production efficiency by more than 30%. Besides, the cleaning parts are equipped with 6 fur brushes, it needs only 25s to transition from glass cleaning to glass laminating. We can provide an interior pressing function according to your requirements.

2.Pressing part:

3.Washing part:

• This high speed CNC insulating glass equipment can automatically identify coated glass and LOW-E glassy membrane layer.

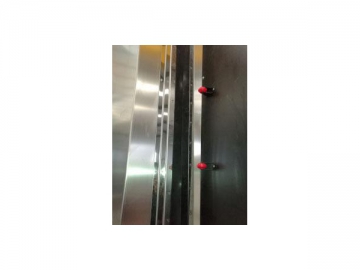

• The distance between air-knives can adjust the glass width according to the glass thickness.

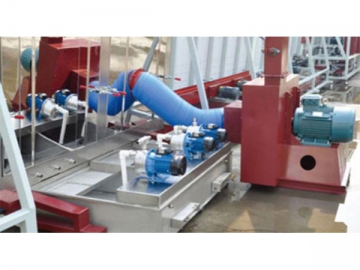

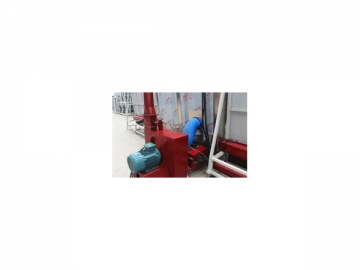

• The air blower is equipped with a heating cabinet at the point of air intake, which makes the use in cold weather more convenient and amplifies the drying effects.

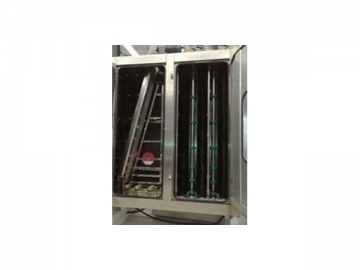

• Cleaning cabinet, air drying cabinet and air nozzle are all made of stainless steel, so they are corrosion-resistant.
• There is an air recycling mechanism between air drying cabinet and air blower. The air nozzle temperature can reach up to 40 ℃ without heating, which will improve the glass cleaning effect.

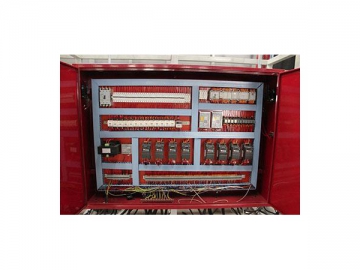

• The whole equipment adopts PLC control system, it adopts touch screen as display screen, which can display the temperature and speed of water, production output and so on. And there will be prompt message on the display when equipment errors happen.
• The 3^rd stage of production line can automatically implement storage function according to the glass size, which increase above 30% production efficiency.

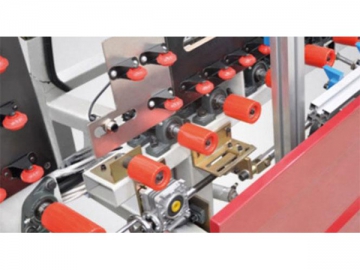

• This high speed CNC insulating glass equipment can automatically adjust the distance of pressing according to the clearance between glass and aluminum bar. Actually, this clearance can be very precise to a millimeter.
• Laminating part adopts servo drive control subsystem, which is more precise and will not be affected by temperature comparing to traditional pneumatic control systems.

• Clean the equipment every day, and sweep the surrounding environment of equipment.
• Apply lubricating oil to transmission parts.
• Check the electric wire joint of the equipment weekly, identify the points with potential errors.
• Check the screw of transmission part joint monthly and fasten any loose screws.
• Change the lubricating oil for reducer every six months.
• Change the hydraulic fluid for hydraulic pressure system every year.
• Sweep the dust for electronic control system and check the completeness.
