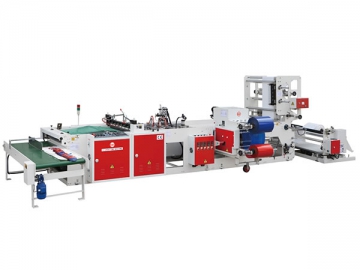

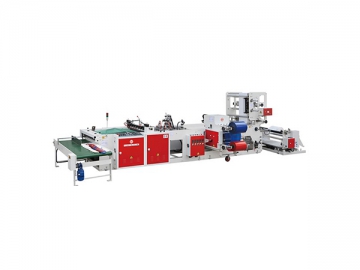

CW-800CSD Super High Speed Soft Loop Handle Bag Making Machine
Features of the soft loop handle bag making machine
1. 3 pcs servo motor drive from soft loop handle device. (Patent)
2. The new design of bag stack and speed down conveyor system. (Patent)
3. Special design of turnover side sealing knife (Italy system)
4. Top-folded sealing knife adopts continuously heating sealing. (Patent)
5. High-accuracy sick photocell, suit for high speed tracking.
Optional equipment
1. Single sheet folding unit (hydraulic loading device)
2. Double lines sealing knife device
3. Bottom sealing knife device
- Soft loop handle bag

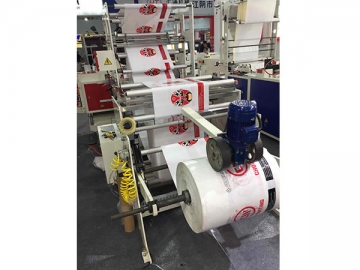

- Unwinder
- Continuous sealing device
- Loop handle sealing device

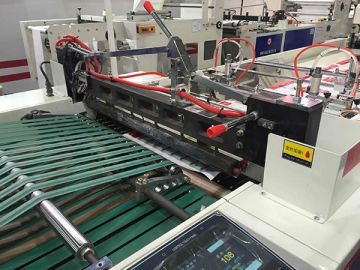

- Sealing knife

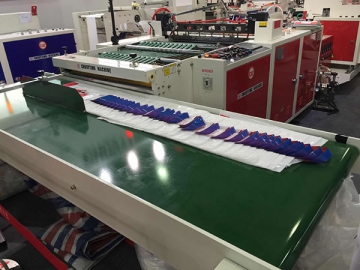

- Auto conveyor table
| Type | |
| Length of bag making (height of the pouch) | 250-700mm |
| Width of bag making | 250-600mm |
| Speed of bag making | 100pcs/min |
| Top folded | 50-75mm |
| Bottom insert | 20-70mm |
| Total power | 10KW |
| Machine weight | 3000kg |
| Machine dimension | 7000X2200X1950mm |
| Air compressor (not included) | 7.5HP |
