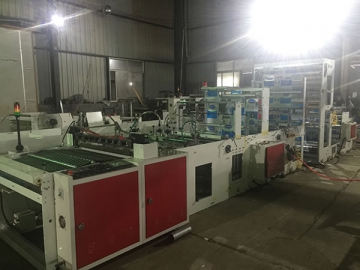

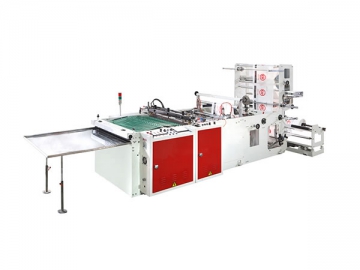

CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine

<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
<span class=new-btn>CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine</span>
: http://cwbagmachinery.com

Features of the sine wave cutter bag making machine
1. CHOVYTING is the only one manufacturer for sine wave bag machine in Asia area.
2. Autonomic controlled by PLC and touch screen for bag width and sine wave
3. With handle punching device

Optional equipment
1. Patch film gluing attachment
2. Gusseting tower

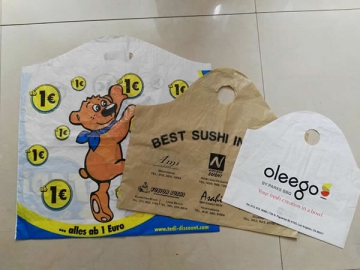

Bag samples :
  • Bottom insert

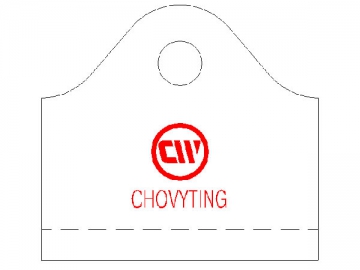

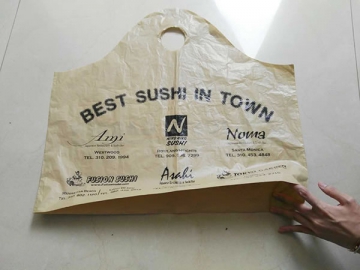

  • Sine wave bag

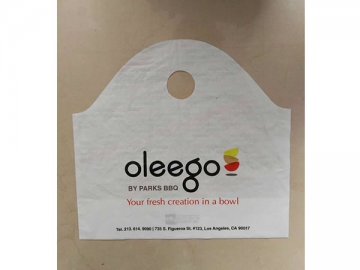

  • Sine wave bag
Machine details :

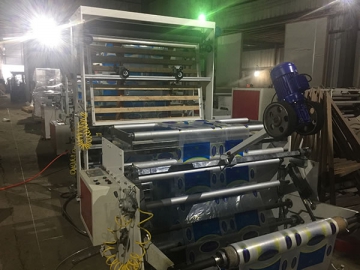

  • Unwinders
  • Gusseting tower (optional)

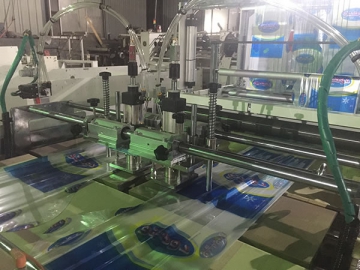

  • Handle hole punch

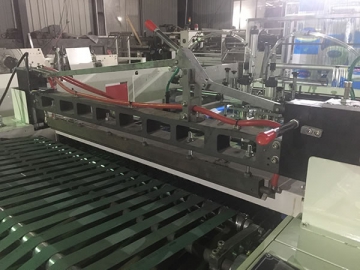

  • Side sealing knife

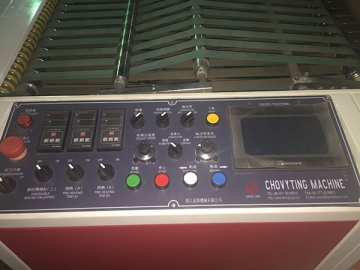

  • Control panel
Technical parameter of the sine wave cutter bag making machine
Model CW-1000SW
Length of bag making 250-450mm
Width of bag making 100-700mm
Unwinder width 1000mm
Unwinder max. diameter 900mm
Speed of bag making 30-100 pcs/min (side seal bag)
30-60 pcs/min (sine wave bag)
Bottom gusset 30-150mm
Total power 12.2kw
Weight of machine 3500kg
Overall dimension 7800X2500X2050mm
Air compressor 6HP

Related names
Plastic bag making machine
Bag making machine
Sine bag making machine
Sine wave bag cutting machine
Sinus bag converting machine
Side seal handle bag machine
