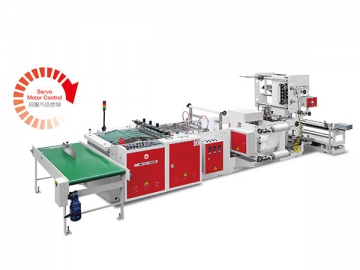

Features of the soft loop handle bag making machine 1. With servo motor drive, PLC and touch screen control 2. Machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity. 3. Any different type of the bag with several uses as options, easy to replace 4. Automatic loop handle feeding and sealing function, to save labor cost and space for your factory 5. The use of oval handle punch enables the machine to make die cut handle bag as well.
Option 1. Double sealing knife 2. Bottom sealing knife 3. Air hole punching unit

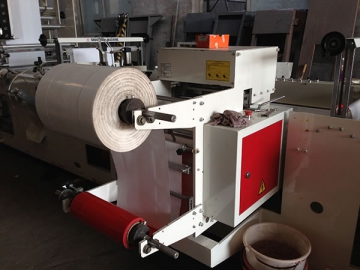

Unwinder

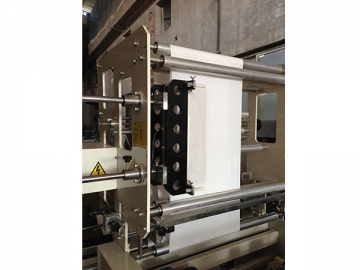

Continuous sealing device

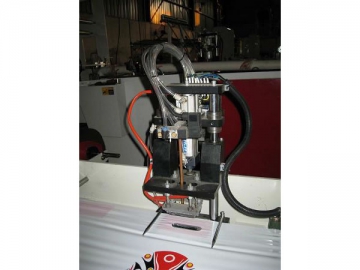

Loop handle sealing device

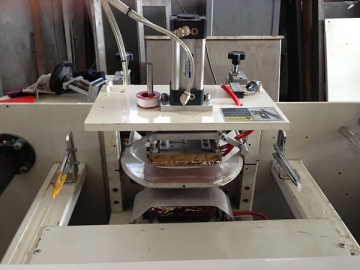

Sealing knife

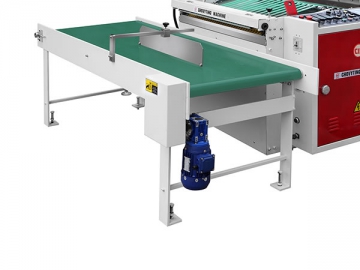

Auto conveyor table
Technical parameter of the soft loop handle bag making machine
Model
CW-800LP
Length of bag making
250-750mm
Width of bag making
250-600mm
Speed of loop handle bag making
60pcs/min
Speed of die cut handle bag making
80pcs/min
Top fold
50-75mm
Bottom gusset
20-70mm
Total power
10kw
Weight of machine
3200kgs
Overall dimension
6000x3100x1870 mm
Air compressor
6HP
