12mm Insulated Shaft Single Gang Potentiometer, WH123Series
Request a Quote
Part Number
WH123
12mm single-turn type insulated shaft potentiometer is widely used in consumer electronics, automotive electronics, industrial control systems, home appliances, etc. By using a plastic insulating shaft, this series offers functions like electric leakage protection and water tightness.
Parameters
| Diameters | 12mm |
| Total rotational angle | 300°±10° |
| Rotational torque | 20~200gf.cm |
| Stopper strength | ≥4kgf |
| Number of resistor elements | single-unit |
| Total resistance | 500Ω-1MΩ |
| Resistance tolerance | ±20% |
| Shaft Types | plastic/nylon |
| Element | carbon film |
| Rated power | ≤0.05W |
| Voltage proof | 250V AC for 1 minute |
| Operating life | ≥10000cycles |

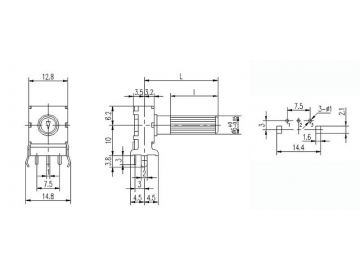

Dimensions
