12mm Insulated Shaft Single Gang Carbon Film Potentiometer, WH12113 Series

12mm Insulated Shaft Single Gang Carbon Film Potentiometer, WH12113 Series
12mm Insulated Shaft Single Gang Carbon Film Potentiometer, WH12113 Series
Request a Quote

Part Number

WH12113
Dimensions

The 12mm single-turn type insulated shaft potentiometer with insulated flat shaft is extremely easy and convenient to adjust as needed.

Parameters
Diameters 12mm
Total rotational angle 300°±10°
Rotational torque 20~200gf.cm
Stopper strength ≥4kgf
Number of resistor elements single-unit
Total resistance 500Ω-1MΩ
Resistance tolerance ±20%
Shaft Types plastic/nylon
Element carbon film
Rated power ≤0.05W
Voltage proof 250V AC for 1 minute
Operating life ≥10000cycles

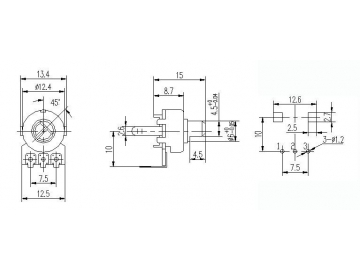

Dimensions
