13011-SP BSPT Male Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel BSPT male fittings
- Carbon steel BSPT male fittings

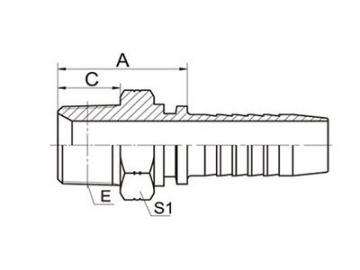

| Part No. | Thread | Hose Bore | Dimensions | ||||
| E | DN | DASH | A | C | S1 | ||
| 13011-04-04SP | R1/4"×19 | 6 | 04 | 27 | 14.5 | 14 | |
| 13011-06-0SSP | R3/8"×19 | 8 | 05 | 26.5 | 15 | 17 | |
| 13011-06-06SP | R3/8" ×19 | 10 | 06 | 27.5 | 15 | 17 | |
| 13011-08-08SP | R1/2"×14 | 12 | 08 | 35 | 20 | 22 | |
| 13011-08-12SP | R1/2"×14 | 20 | 12 | 38 | 20 | 27 | |
| 13011-12-08SP | R3/4"×14 | 12 | 8 | 37 | 20 | 27 | |
| 13011-12-10SP | R3/4"×14 | 16 | 10 | 38 | 20 | 27 | |
| 13011-12-12SP | R3/4"×14 | 20 | 12 | 38.5 | 20 | 27 | |
| 13011-12-16SP | R3/4" ×14 | 25 | 16 | 39.5 | 20 | 32 | |
| 13011-16-12SP | R1"×11 | 20 | 12 | 44 | 25.5 | 36 | |
| 13011-16-16SP | R1"×11 | 25 | 16 | 45 | 25.5 | 46 | |
| 13011-20-20SP | R1.1/4" ×11 | 32 | 20 | 49.5 | 26.5 | 50 | |
| 13011-24-24SP | R1 .1/2"×11 | 40 | 24 | 51.5 | 26.5 | 65 | |
| 13011-32-24SP | R2"×11 | 40 | 24 | 57 | 30 | 65 | |
| 13011-32-32SP | R2"×11 | 50 | 32 | 57 | 30 | 65 | |
