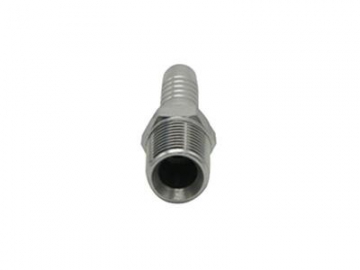

13013-SP BSPT Male Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel BSPT male fittings
- Carbon steel BSPT male fittings
| Part No. | Thread | Hose Bore | Dimensions | ||||
| E | DN | DASH | A | C | S1 | ||
| 13013-12-12SP | R3/4''×14 | 20 | 12 | 38 | 20 | 30 | |
| 13013-16-16SP | R1''×11 | 25 | 16 | 45.9 | 25.5 | 38 | |
| 13013-20-20SP | R1.1/4''×11 | 32 | 20 | 51.3 | 26.5 | 46 | |
| 13013-24-24SP | R1.1/2''×11 | 40 | 24 | 53.2 | 26.5 | 50 | |
| 13013-32-32SP | R2''×11 | 50 | 32 | 58.5 | 30 | 65 | |
