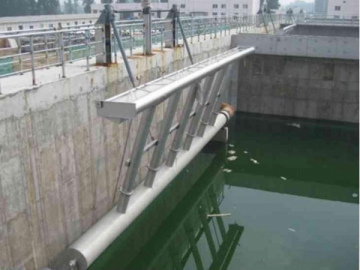

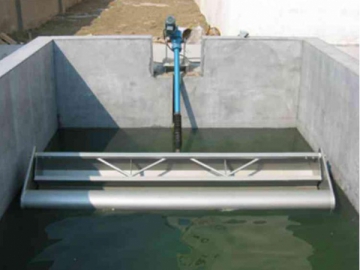

Our XBS type rotating frame industrial decanter is a supernatant discharge device suitable for a wide range of sewage treatment systems with activated sludge systems, including SBR and CASS systems.

Technical Parameters
Model Width L(mm) Decanter depth (m) Decanter capacity (m3/h) Center distance L(mm)
XBS-50 500 0.5-2.0 50-70 200
XBS-100 1000 100-140 700
XBS-200 2000 200-280 1700
XBS-300 3000 300-420 2700
XBS-400 4000 400-560 3700
XBS-500 5000 500-700 4700
XBS-600 6000 600-840 5700
XBS-700 7000 700-980 6700
XBS-750 7500 750-1050 7200
XBS-800 8000 800-1120 7700
XBS-900 9000 900-1080 8700
XBS-1000 10000 1000-1200 9700

Design Details
To begin the decanting process, the automatic system starts the motor, which pulls the sink back to the water surface through the pull rod. The general decant height is 0.5 to 2.0 meters, and is set by the operator.

The intelligent control box is installed on the operating table of the SBR aeration tank. The operation box has a manual/remote selection switch. Manual mode can be used for commissioning or operating manually on the site for maintenance or supervised operation.

Structures

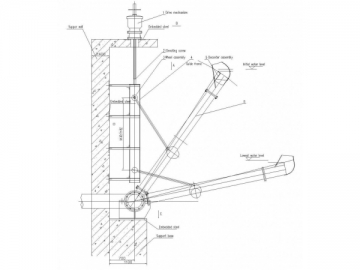

The XBS decanter consists of an electric push rod, a float bucket, a sewer pipe, branch pipes, a decanter weir plate, a sealed joint, and rotary support items. All underwater parts are made of stainless steel.

Features
(1) Highly automated and does not require manual adjustment.
(2) Equipped with an automatic protection system.
(3) The underwater part is made of stainless steel and has strong corrosion resistance.
(4) High quality effluence. We maintain the falling speed at the same level to avoid disturbing the sludge layer.
(5) The power consumption of this equipment is small. The motor power is between 0.75~1.5KW.

Customization Notes
Please provide throughput and material requirements.

Huaneng Jinhao manufactures water treatment equipment and domestic sewage treatment plant to global markets, with decades of experience, we can fabricate any water treatment equipment and machinery like industrial water decanter, water filtration equipment, sludge separation equipment, and the auxiliaries of water treatment equipment.
