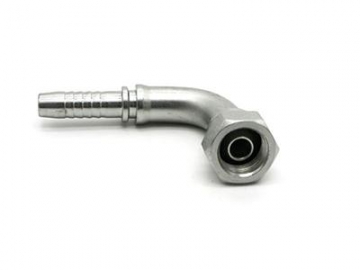

22191(W)(T) BSP 90° Elbow Female Multi Seal Fittings

22191(W)(T) BSP 90° Elbow Female Multi Seal Fittings
22191(W)(T) BSP 90° Elbow Female Multi Seal Fittings
: http://lede-fittings.com/1-9-5-grooved-90-reducing-elbow/index.html

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel BSP 90° elbow female multi seal fittings
  • Carbon steel BSP 90° elbow female multi seal fittings

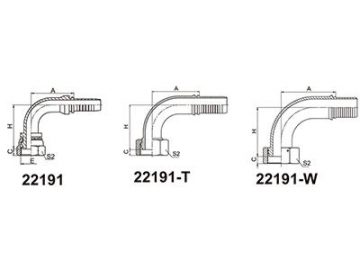

22191(W)(T) BSP 90° Elbow Female Multi Seal Fittings List

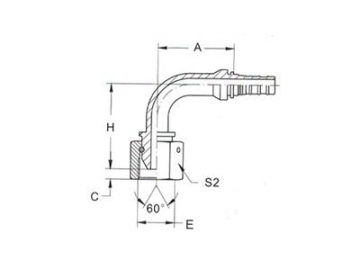

Part No. Thread Hose Bore Dimensions
E DN DASH A C H S2
22191-04-04 G 1/4"×19 6 04 30 4 38.5 19
22191-06-05 G3/6"×19 6 05 33 5 42 22
22191-06-06 G3/8"×19 10 06 35.5 5 44.6 22
22191-08-08 G1/2"×14 12 08 41 6 52 27
22191-10-10 G5/8"×14 16 10 56.5 8 57.8 30
22191-12-12 G3/4"×14 20 12 65.5 9.5 68 32
22191-16-14 G1"×11 22 14 71.2 11 69.5 41
22191-16-16 G1"×11 25 16 76.7 11 75 41
22191-20-16T G1.1/4"×11 25 16 76.7 10 78 50
22191-20-20W G1.1 /4"×11 32 20 92.3 10 85.3 50
22191-24-24W G1 .1/2"×11 40 24 109.4 11 .5 108 55
22191-32-32W G2"×11 50 32 133.1 15 123.8 70
