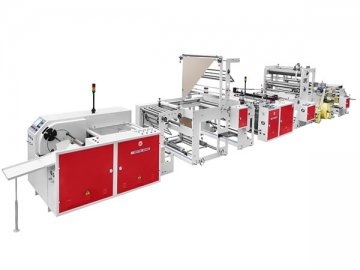

Features 1. This machine is to make both overlap and perforation rolling bag. 2. Rewinder with 4 servo motor control 3. Chovyting is the only one manufacturer for this equipment in China.
Optional equipment 1. Bottom sealing knife
Technical parameter
Model
CW-1000PG OR
Length of bag making
500-900mm
Width of bag making
400-1000mm
Speed of bag making
100pcs/min
Line speed
60m/min
Unwinder width
1000mm
Unwinder diameter
900mm (max.)
Rewinder width
300mm
Rewinder max. diameter
130mm (max.)
Finished roll exchange times
7 rolls/min
Film thickness
0.025-0.06mm
Total power
21kw
Weight of machine
4500kg
Overall dimension
15000x2800x3000mm
Air compressor
7.5HP
Picture about Details:

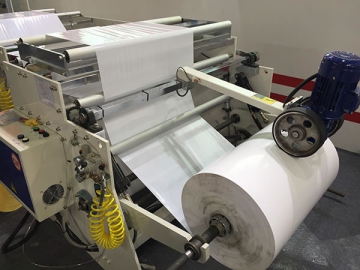

Unwinding unit
punching unit

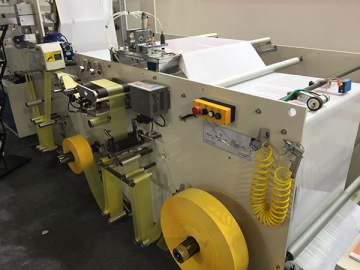

Draw tape insertion unit
Hot air sealing unit
Rear part of entire machine
Rewinding unit

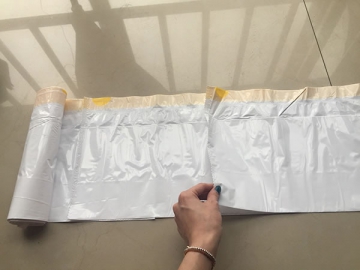

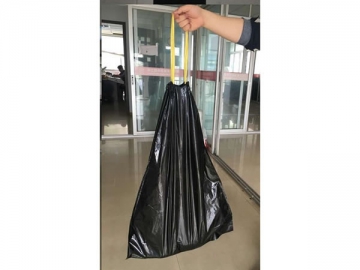

Samples:
