14211 SAE Straight Male ORFS Fittings
Application: for use with hydraulic braided hoses
Materials:- Stainless steel SAE straight male ORFS fittings
- Carbon steel SAE straight male ORFS fittings

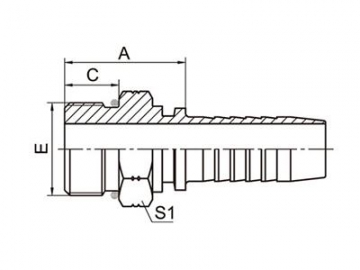

| Part No. | Thread | Hose Bore | O-ring | Dimensions | ||||
| E | DN | DASH | A | C | S1 | |||
| 14211-04-04 | 9/16"×16 | 6 | 04 | O011 | 22.3 | 9.8 | 17 | |
| 14211-06-06 | 11/16''×16 | 10 | 06 | O012 | 24 | 11.2 | 19 | |
| 14211-08-08 | 13/16"×16 | 12 | 08 | O014 | 28.5 | 12.8 | 22 | |
| 14211-10-10 | 1''×14 | 16 | 10 | O016 | 34 | 15.5 | 27 | |
| 14211-12-12 | 1.3/16''×12 | 20 | 12 | O018 | 36.5 | 17 | 32 | |
| 14211-16-16 | 1.7/16''×12 | 25 | 16 | O021 | 38.5 | 17.5 | 38 | |
| 14211-20-20 | 1.11/16''×12 | 32 | 20 | O025 | 41.5 | 17.5 | 46 | |
| 14211-24-24 | 2''×12 | 40 | 24 | O029 | 43.5 | 17.5 | 55 | |
