High-efficiency Indoor IP20 2835 SMD Cool White LED Strip Light
Key Features
- Ambient Temperature: -20℃ to 45℃
- Voltage: DC24V
- Length/Reel(M/ft): 5m/16.4ft
- High luminous efficacy up to 180lm/W, providing higher brightness under the same power
- 5000-6000K bright cool white light. Ideal choices for office and retail store lighting
- High color consistency with color tolerance within 3 SDCM
- Premium 3 Oz copper FPC circuit board guarantees the stable performance
- Dustproof, great for indoor lighting projects
Specification
| Model | Led Qty | Power | Lumens per feet | Cutting increment | LED pitch | PCB width | |
| 5000K | 6000K | ||||||
| FH05W-P0-G1 28HX8x 24V70S W08L05 | 70LEDs/M | 4.8W/M 1.46W/ft | 232lm/ft | 223lm/ft | 100mm 3.94˝ | 14.3mm 0.56˝ | 8mm 0.31˝ |
| FH10W-P0-G1 28HX8x 24V140S W08L05 | 140LEDs/M | 9.6W/M 2.93W/ft | 451lm/ft | 433lm/ft | 50mm 1.97˝ | 7.1mm 0.28˝ | 8mm 0.31˝ |
| FH14W-P0-G1 28HX8x 24V210S W10L05 | 210LEDs/M | 14.4W/M 4.39W/ft | 658lm/ft | 634lm/ft | 33.3mm 1.31˝ | 4.8mm 0.19˝ | 10mm 0.39˝ |
| FH05W-P0-G1 28HX8x 24V64S W08L05 | 64LEDs/M | 4.8W/M 1.46W/ft | 238lm/ft | 229lm/ft | 125mm 4.92˝ | 15.6mm 0.61˝ | 8mm 0.31˝ |
| FH10W-P0-G1 28HX8x 24V128S W10L05 | 128LEDs/M | 9.6W/M 2.93W/ft | 479lm/ft | 457lm/ft | 62.5mm 2.46˝ | 7.8mm 0.3˝ | 10mm 0.39˝ |
| FH12W-P0-G1 28H2G8x 24V80S W10L05 | 80LEDs/M | 12W/M 3.66W/ft | 668lm/ft | 658lm/ft | 100mm 3.94˝ | 12.5mm 0.49˝ | 10mm 0.39˝ |

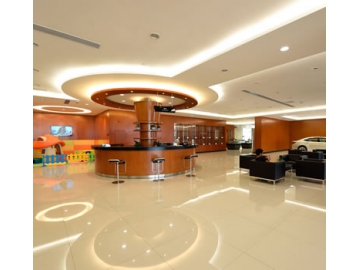

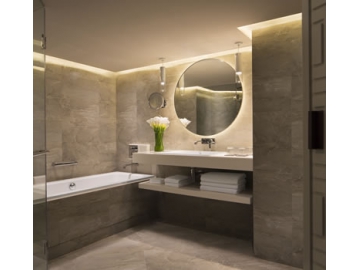

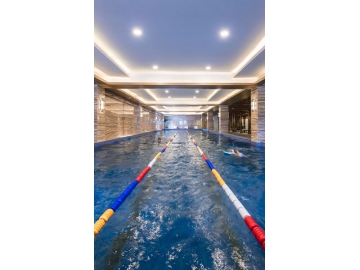

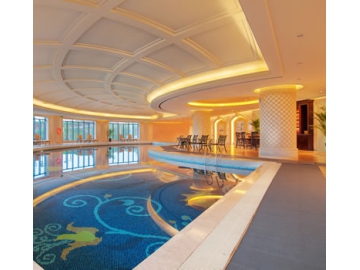

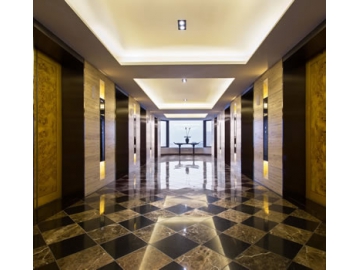

- Applications
Accessories

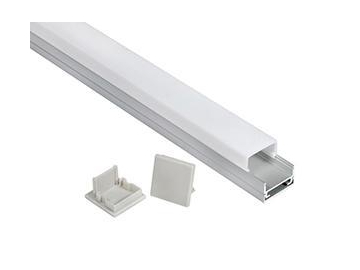

- LED Aluminum Channel

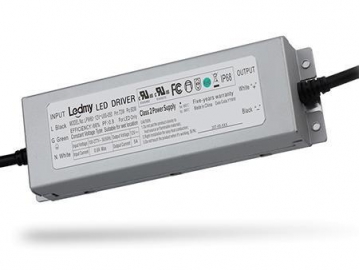

- Waterproof LED Power Supply, Compact Series
- LED Neon Flex Accessories
Projects

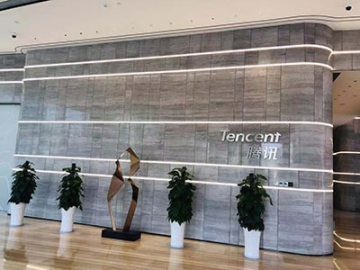

- Tencent Innovation and Entrepreneurship Town
- Tian Ji Bar - Ningbo Treasure Center
- Office Lighting Project in Guangzhou
