Medical Endoscope Camera System with Dual Simultaneous Image Outputs, INP-500 Manufacturer

Medical Endoscope Camera System with Dual Simultaneous Image Outputs, INP-500

Request a Quote

About Us: http://endoscope-cameras.com/1-4-endoscope-camera-system-with-dual-simultaneous-image-outputs.html

This medical endoscope camera is groundbreakingly equipped with a system of dual simultaneous image outputs that allows for comparative analysis in order to detect the focus. It is applicable to hospital departments that conduct hysteroscopy, laparoscopy and genitourinary surgery.

Highlights

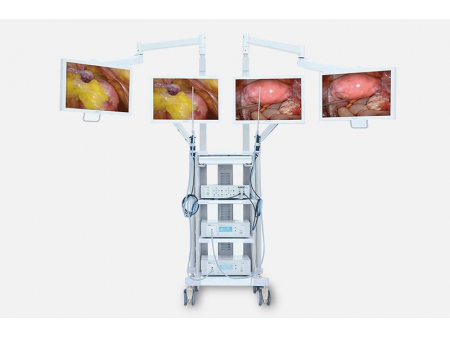

Dual Display
The screen on this endoscope camera can simultaneously display two videos.
Two Endoscope Camera System
With this endoscope camera, two surgical operations can be conducted at the same time. The screen allows staff in the operating room to clearly know what’s going on.
WIFI Is Enabled
The WIFI module in the endoscope camera allows for the real-time transmission of surgery videos to mobile phones.
Foot Control Is Configured
This component helps surgeons save videos and images in a hands-free way.

Features

This endoscope camera can send signals in accordance with DVI/CVBS/SDI/HDMI standards;

This medical endoscope camera is equipped with a 1100TVL 1/2.8" SONY CMOS with 2 MP to shot Full HD videos with 50/60 frames per second while avoiding trail effect. It is also equipped with a 5-inch secondary monitor;

This medical imaging machine supports the switch of NTSC menu to PAL menu. It also supports the OSD menu;

This endoscope camera can carry out different functions, like white balance, image freeze, anti-fog, anti-reflection, exposure compensation, screenshots and photo-taking;

The screen can display one video or to be split to display two or four videos at the same time. It can save videos and images in USB device, TF card, hard disc drive or online storage platform;

This endoscope camera can browse online videos with dual-stream technology in different resolutions. At the same time, you can use it to record videos or take screenshots;

This medical imaging camera is driven by an AC220V power supply and can work in places with the temperature ranging from 5°C to 40°C. It is also equipped with power surge protector with 500V clamping voltage and can avoid harms caused by static electricity, with the protection of contact electricity discharge reaching 8 kV and the air discharge reaching 15 kV;

Able to be connected with different endoscope camera in different departments while avoid causing interference to high-frequency electric knife;

Specifications

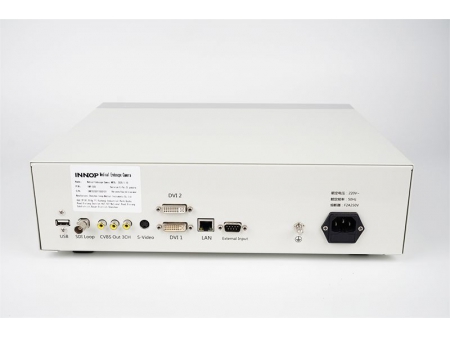

Video output: DVIx2, 3G-SDIx1, CVBSx3, S-VIDEOx1, LANx1

Input power: ≤100VA

Safety fuse: F2A250V (filter), F3.15A250V (switch power supply)

Power supply: 220V, 50Hz

Operation temperature: 5~ 40℃

Storage temperature: -20~ 55℃

Operation & storage humidity: ≤80%, no condensation

Atmospheric pressure: 50kPa~106kPa

Brightness: 0~20 adjustable

Sharpness: 0~10 adjustable

Color saturation: 0~20 adjustable

Gain: 0~10 adjustable

Gamma: 0.45~0.75

Format: PAL/NTSC

SNR (signal to noise ratio): ≤55dB under operating condition

Handle button functions: white balancing, screen freezing

Minimum illumination: F1.2, ≤3Lux

Resolution: 1920*1080P@60fps

Standards: GB9706, YY0505, GB/T14710, CE, ROHS

Language: English, Japanese, Korean, Russian, Spanish, Simplified Chinese, Traditional Chinese (other languages can be customized)

Dimensions: 380mm×300mm×115mm

Weight: 4.6kg
