X1 Series LED Track Lighting Head, LED Track Luminaire with Built-in Drive and Lens
Application

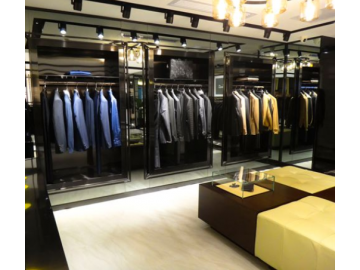

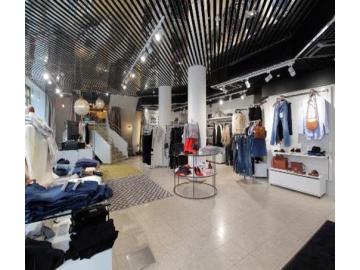

Ideal for gallery, museum, retail store, shopping mall, exhibition hall and other commercial or private applications.
Specification
- Power 8W/12W/20W/24W/25W/30W
- LED Chip Citizen/CREE COB
- LED Driver Tridonic, Philips, Lifud, BOKE, Others are available
- Dimming options Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.9
- Body Material ADC12 die-casting aluminum alloy
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black/white
- Track adapter Global, PowerGear and other brands are available
- Phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 3-5 Years

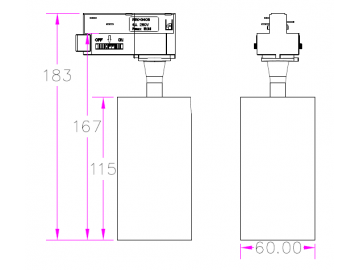

Dimension
- 8W/12W
- 20W/24W
- 25W/30W
Product Models
| Model No. | Power | Dimension | LED Chip | CCT | CRI | Luminous Efficacy | Beam Angle | Input Voltage | Track adapter |
| BH-TL-08W-X1 | 8W | Φ60*115mm | Citizen/ CREE COB | 2700K 3000K 4000K 5000K | 80 90 97 | 90-110lm/W @CRI80 | 15° 24° 38° 60° （lens) | AC220-240V/ AC100-240V 50/60Hz | 1 phase 2 phase 3 phase |
| BH-TL-12W-X1 | 12W | Φ60*115mm | |||||||
| BH-TL-20W-X1 | 20W | Φ75*130mm | |||||||
| BH-TL-24W-X1 | 24W | Φ75*130mm | |||||||
| BH-TL-25W-X1 | 25W | Φ88*155mm | |||||||
| BH-TL-30W-X1 | 30W | Φ88*155mm |
