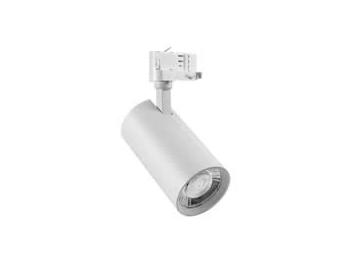

D Series LED Track Lighting Head, LED Track Luminaire with Built-in Drive
Features
- The color render index (CRI) is Ra97 (2700K/3000K/4000K), which displays the natural color of objects
- The LED driver of the track light is of high quality, high efficiency, energy saving.
- We provide two kinds of track adaptor, one is PowerGear,the other is GLOBAL, for you to choose from.
- Four kinds of lenses beam angle: 15°, 24°, 38°and 60°are available.
- Environmentally friendly: it does not emit any pollution, such as lead, mercury or other pollutants.
- Four kinds of power: 15W, 20W, 25W and 30W are available.
Specification
- Power 15W/20W/25W/30W
- LED Chip Citizen/CREE COB
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and other brands are available
- Dimming option Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- Body Material ADC12 die-casting aluminum alloy
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black / white
- Track adapter Global, PowerGear and other brands are available
- Phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 3-5 Years
Dimensions
15W/20W/25W/30WProduct Models
| Model No. | Power | Dimension | LED Chip | CCT | CRI | Luminous Efficacy | Lens Beam Angle | |
| BH-TL-15W-D | 15W | Φ80*155mm | Citizen/ CREE COB | 2700K 3000K 3500K 4000K 5000K | 80 90 97 | 90-100lm/W @CRI80 (whole lamp) | 15° 24° 38° 60° | |
| BH-TL-20W-D | 20W | |||||||
| BH-TL-25W-D | 25W | |||||||
| BH-TL-30W-D | 30W |
Photometric

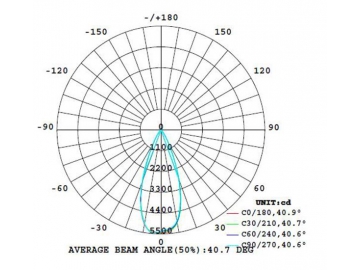

- Luminous Intensity Distribution Diagram 30W 4000K Beam Angle 38°

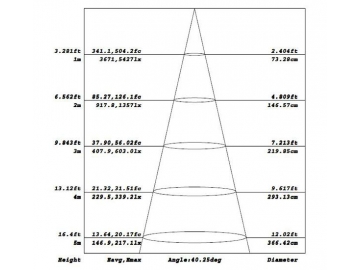

- The Average Illuminance Effective Figure 30W 4000K Beam Angle 38°
