High Performance Solid Carbide End Mills, X Series Manufacturer

High Performance Solid Carbide End Mills, X Series

: http://carbide-toolings.com/1-4-solid-carbide-end-mills.html

Wide Range of Applications
The variable helix is designed by taking both tool strength and chip space into consideration, suitable for high-efficiency machining applications where large cutting depth and width are needed;

Different Milling Operations

Face milling with small ap (depth of cut) and large ae (width of cut);
Side milling with large ap (depth of cut) and small ae (width of cut);
Shallow slotting (less than 0.5D);

Superior Substrates and Coatings

Ultra-fine grained carbide substrates provide high wear resistance and hardness;
Self-developed AlCrSiN coatings are applied along with Balzers latest KiLA furnace;

Unique Cutting Edge Geometry
Variable pitch end mill utilizes unequal flute spacing, which enables vibrations to be suppressed;

Explore Our Catalogue of UC Series Solid Carbide End Mills

Item Code	Category	End Shape	Length Type	Number of Flutes	Flute Diameter

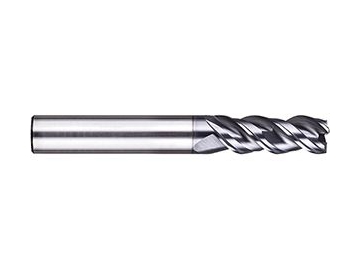

	High Performance End Mill	Square End	Regular	3	Ø3-Ø20

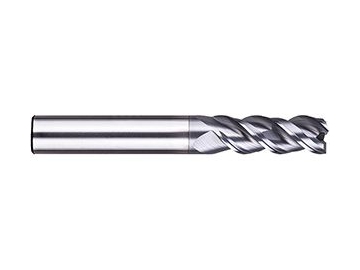

	High Performance End Mill (chambered)	Square End	Regular	3	Ø6-Ø16

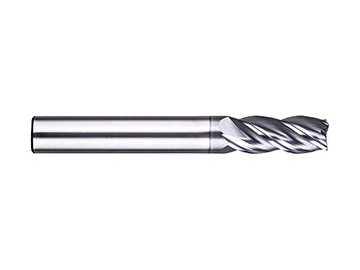

	High Performance End Mill	Square End	Regular	4	Ø2-Ø20

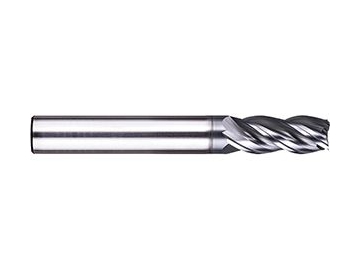

	High Performance End Mill (chambered)	Square End	Regular	4	Ø3-Ø20

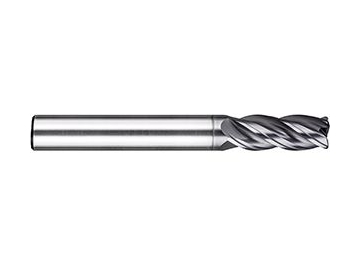

	High Performance End Mill (chambered)	Square End	Long Neck	4	Ø3-Ø20
	High Performance End Mill	Corner Radius	Regular	4	Ø3-Ø16

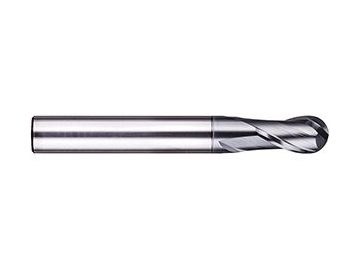

	High Performance End Mill	Ball Nose	Regular	2	Ø1-Ø12

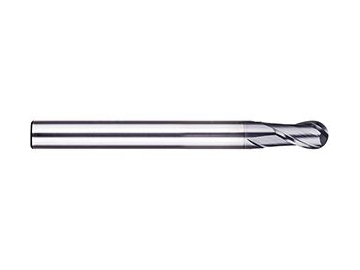

	High Performance End Mill	Ball Nose	Long Shank	2	Ø4-Ø12
