LED Recessed Light, Edge-lit Fixture

: http://mf-ledlights.com/2-1-2-led-edge-lit-flat-panel-light.html

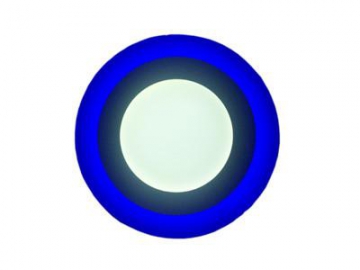

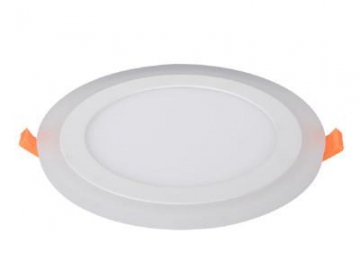

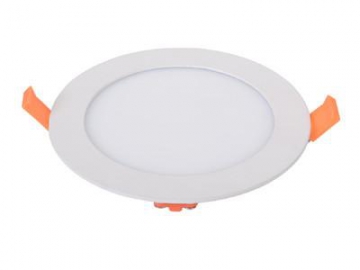

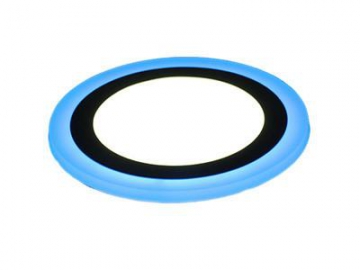

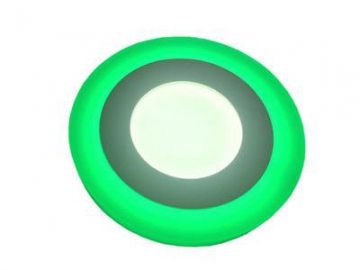

SHCET edge-lit LED recessed light is built with a round shape and die-casting aluminum housing. It provides 2835SMD LED source at wattage of 6w – 36w giving a high efficiency lumen. With a wide range of edge-lit color options such as blue, green, purple etc., this LED ceiling light can offer an attractive visual aesthetic to perk up your bathroom, basement, hallway, patio, porch and corridor.

CET-130R-6W LED Recessed Light
Model: CET-130R-6W
Power: 3+3W
Lamp Diameter(mm): Φ105
Cut Out Size(mm): 75
LED Chips Quantity(pcs): 30
CET-130R-9W LED Recessed Light
Model: CET-130R-9W
Power: 6+3W
Lamp Diameter(mm): Φ145
Cut Out Size(mm): 105
LED Chips Quantity(pcs): 45
CET-130R-18W LED Recessed Light
Model: CET-130R-18W
Power: 12+6W
Lamp Diameter(mm): Φ195
Cut Out Size(mm): 155
LED Chips Quantity(pcs): 90
CET-130R-24W LED Recessed Light
Model: CET-130R-24W
Power: 18+6W
Lamp Diameter(mm): Φ245
Cut Out Size(mm): 210
LED Chips Quantity(pcs): 120
CET-130R-36W LED Recessed Light
Model: CET-130R-36W
Power: 24+12W
Lamp Diameter(mm): Φ320
Cut Out Size(mm): 280
LED Chips Quantity(pcs): 180

Details

Features

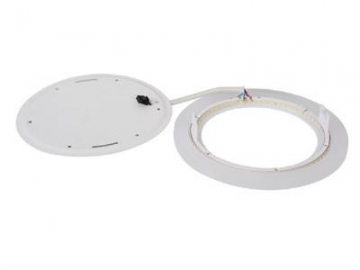

The light body adopts the aluminum housing with good quality and the integrated ultrathin design to guarantee the better heat dissipation.
The LED ceiling light fixture adopts the high quality 2835SMD chips, and the lamp flux of single chip reaches the 28-30LM, thus can guarantee the high light effect.

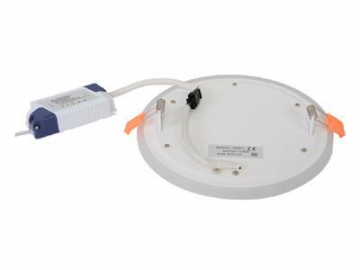

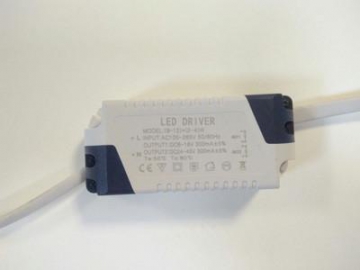

The LED ceiling light adopts the IC( integrated circuit) constant current LED driver, ensuring the security when the LED light is being used.

Detailed Parameters

Lamp Material	Aluminum+ PMMA
Beam Angle	180°
IP Rating	IP40
Surge Protection	2.5 kV
LED Chip	2835SMD 0.2W
CRI	70-75 or 80-85
Power Factor	0.6-0.7 or 0.9-0.97
Input Voltage	AC85-277V or AC165-265V
Body Color	White, Silver, Golden, Black, customized
Color Temperature	3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K

Note: There are dimmable driver and non-dimmable driver, and LED emergency power kit for a minimum of 120 minutes' lighting also can be equipped as request.
