Edge-lit COB LED Flood Light Manufacturer

Edge-lit COB LED Flood Light

: http://mf-ledlights.com/2-1-2-led-edge-lit-flat-panel-light.html

SHCET edge-lit COB LED flood light is constructed of die-cast aluminum body and high efficiency COB LEDs, giving a durable body while producing superior brightness. These edge-lit COB LED flood lights are great to be applied as residential and commercial lighting like yards, driveways, parking lots, and other places need bright light.

CET-108E-10W Edge-lit COB LED Flood Light
Model: CET-108E-10W
Power: 10W
Lamp Size(mm): 124x110x37mm
IP: IP66
LED Chips Quantity(pcs): 1x10W COB
Lamp Flux(LM): 1100LM

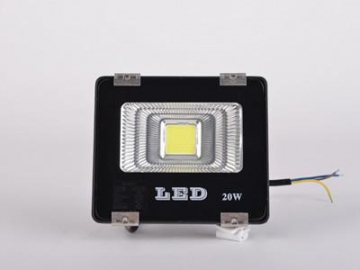

CET-108E-20W Edge-lit COB LED Flood Light
Model: CET-108E-20W
Power: 20W
Lamp Size(mm): 146x126x37mm
IP: IP66
LED Chips Quantity(pcs): 1x20W COB
Lamp Flux(LM): 2200LM

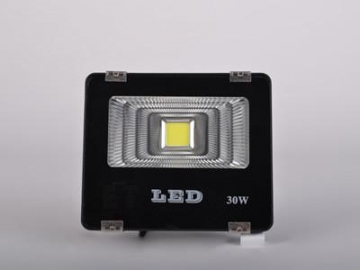

CET-108E-30W Edge-lit COB LED Flood Light
Model: CET-108E-30W
Power: 30W
Lamp Size(mm): 195*165*40mm
IP: IP66
LED Chips Quantity(pcs): 1x30W COB
Lamp Flux(LM): 3300LM

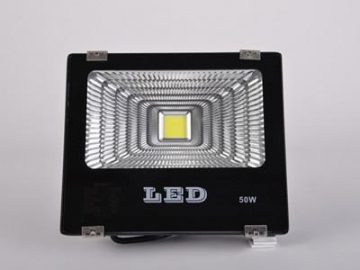

CET-108E-50W Edge-lit COB LED Flood Light
Model: CET-108E-50W
Power: 50W
Lamp Size(mm): 230x195x56mm
IP: IP66
LED Chips Quantity(pcs): 1x50W COB
Lamp Flux(LM): 5500LM

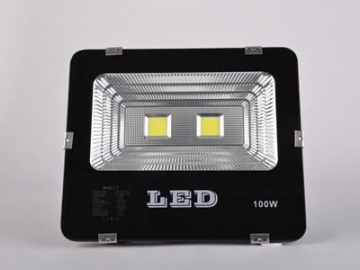

CET-108E-100W Edge-lit COB LED Flood Light
Model: CET-108E-100W
Power: 100W
Lamp Size(mm): 297x250x57mm
IP: IP66

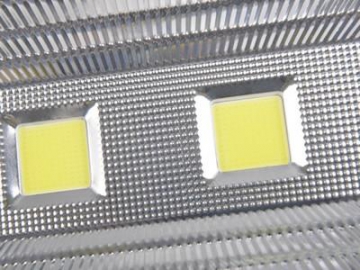

LED Chips Quantity(pcs): 2x50W COB
Lamp Flux(LM): 11000LM

Details

Features

The flood lights use an IC (integrated circuit) constant current waterproof driver, and users can choose to equip the lights with dimming and timing functions. Each LED light features a stable current and a surge protection of up to 6,000V, all to ensure a safe usage.

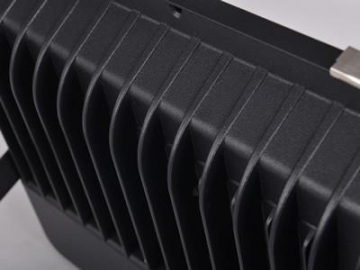

The LED light features an integrated die cast aluminum housing and light source design, making installation easy.
The light source is an LED chip with a high luminance, and features a low energy consumption and a low heat, with a service life of up to 50,000 hours.

Detailed Parameters

Lamp Material	Die Cast Aluminum + Glass
Beam Angle	120°
IP Rating	IP65 or IP66
Surge Protection	4-6KV
LED Chips	2835SMD 0.5W or COB
CRI	70-75 or 80-85
Power Factor	0.6-0.7 or 0.9-0.97
Input Voltage	AC85-277V or AC165-265V
Body Color	White, Black, customized
Color Temperature	3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K;
Diffuser	Aluminum or PC

Note: The diver has dimmable and non-dimmable types.
