PCBN Chip Breaker Insert

: http://cuttingtoolcn.com/2-3-bnc-702-pcbn-composite-inserts.html

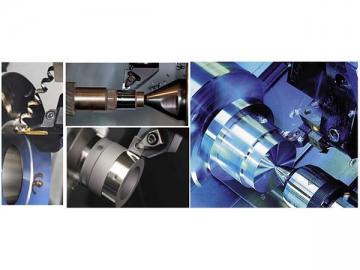

Application:
Worldia chip breaker PCBN inserts are used for machining hardened steels, cast irons and sintered irons as well as powder metallurgy components.

Description of PCBN Material:
Cubic boron nitride is the second hardest material in the world invented successfully in 1957. The hardness of CBN’s single crystal is HV8000-9000 while the hardness of PCBN is HV2500-5000, so its abrasive resistance is considerably better than tungsten carbide and ceramics. With high temperature oxidation resistance at 1000℃, CBN will do not have any chemical reaction together with ferrous material at 1200-1300℃. So CBN material is ideal for cutting ferrous materials, the CBN cutting tools are used for cutting hardened steel, cast iron, sintered iron as well as powder metallurgy components.

Features of Chip Breaker PCBN Insert:
1. Special 3D slot shape reduce the cutting force, and obtain the higher accuracy of dimensions and positioning.
2. Same slot shape of PCBN insert can be fine processed and rough processed by chip breaking.
3. Suitable for machining hardened steel/
4. This cutting tool is applied to remove carburized layer, the quenching part and non quenching part both can be cut.

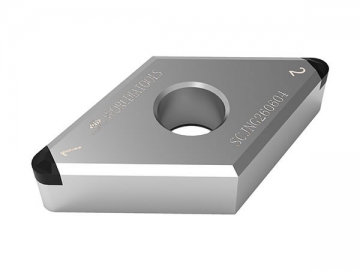

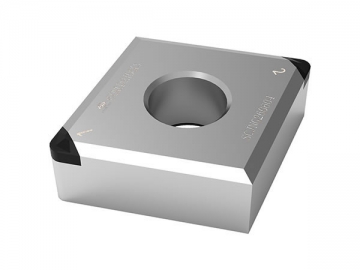

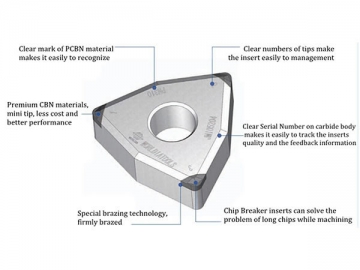

Worldia Chip Breaker PCBN Insert:
1. Premium CBN materials, mini tip, less cost and better performance
2. Clear mark of PCBN material makes it easily to recognize
3. Clear numbers of tips make the insert easily to management
4. Special welding technology, firmly welded

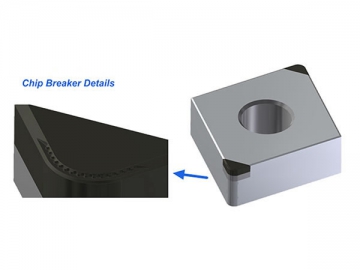

5. Chip breaker inserts can solve the problem of long chips while the process
6. Clear serial number on carbide substrate makes it easily to track the PCBN insert quality and the feedback information

Technical Specifications:

Standard cutting edge	Sharp Cutting Edge	Strong Cutting Edge
S0102505	S0051502	S0103505

Shape

ISO

ANSI

Cutting Edge

Tip Shape

Grade

Dimensions in mm

PN311

PN310

PN312

φd

CNGA120404-2N

CNGA431-2N

S0102505

SLCB22S

●

12.7

5.16

4.76

0.4

2.2

S0051502

●

S0103505

●

CNGA120408-2N

CNGA432-2N

S0102505

●

0.8

S0051502

●

S0103505

●

CNGA120404-4N

CNGA431-4N

S0102505

SWWCB22S

●

12.7

5.16

4.76

0.4

2.2

S0051502

●

S0103505

●

CNGA120408-4N

CNGA432-4N

S0102505

●

0.8

S0051502

●

S0103505

●

DNGA150604-2N

DNGA441-2N

S0102505

SLCB22S

●

12.7

5.16

4.76

0.4

2.2

S0051502

●

S0103505

●

DNGA150608-2N

DNGA442-2N

S0102505

●

0.8

S0051502

●

S0103505

●

DNGA150604-4N

DNGA441-4N

S0102505

SWWCB22S

●

12.7

5.16

4.76

0.4

2.2

S0051502

●

S0103505

●

DNGA150608-4N

DNGA442-4N

S0102505

●

0.8

S0051502

●

S0103505

●

WNGA080404-3N

WNGA431-3N

S0102505

SLCB22S

●

12.7

5.16

4.76

0.4

2.2

S0051502

●

S0103505

●

WNGA080408-3N

WNGA432-3N

S0102505

●

0.8

S0051502

●

S0103505

●

WNGA080404-6N

WNGA431-6N

S0102505

SWWCB22S

●

12.7

5.16

4.76

0.4

2.2

S0051502

●

S0103505

●

WNGA080408-6N

WNGA432-6N

S0102505

●

0.8

S0051502

●

S0103505

●

Tip shape

SF	SL	SS	CB	CS	SWW	SWU
Full Face	Solid Tipped Corner	Solid CBN	Standard Tipped Corners	Standard Full Edge	Solid Tipped Corners Type ‘W’	Solid Tipped Corners Type ‘U’

Cutting Edge Design

ST	WG	CB
Nose Radius	Wiper	Chip Breaker

Hard Steel Machining - Special PCBN Introduction.

Code	Ap	22	25	28	30	40
Size	Ap	2.2	2.5	2.8	3	4

Hard Steel Machining - Special PCBN Introduction. Standard tipped comers Solid tipped comers

Work piece Material	type	WORLDIA PCBN Grades	Content	PCBN Grade	Bond	Hardness	Characteristics	Applications
H	Solid tipped corners	PN311	45~50	1	TiC	2600~2800	Good thermal stability and crater wear resistance	Used for high-speed continuous turning of hardened steel
		PN310	60~65	1~2	TiCN	2600~2800	Combination of wear resistance and thermal stability	Used for moderately interrupted and continuous turning of hardened steel
		PN312	65~70	1<	TiN	2700~2900	High degree of toughness due to fine CBN and ceramic binder matrix	Used for heavy interrupted turning of hardened steel

Material:
The tool bit uses premium PCBN blanks manufactured by world famous companies.
The body part uses high quality tungsten carbide.

Packaging:
Our chip breaker PCBN insert can be packed with standard WORLDIA packaging, and also various non-standard packaging as per request.

Quality Control:
We have dedicated team of quality control and precise equipment to keep good and stable performance for our products and processing services.

OEM/ODM Service:
We can customize the tool and laser markings according to your requirements. Our business partners are all over the world including some cutting tool industry giants.

Contact:
We are ready to work together with friends from different walks of life to promote the development of super hard materials and tools industry, and also global agents are welcomed.

As a specialized PCBN insert manufacturer and supplier in China, Worldia also provides a wide range of products including diamond engraving tool, PCD saw blade, PCD diamond scribing wheel, and much more.
