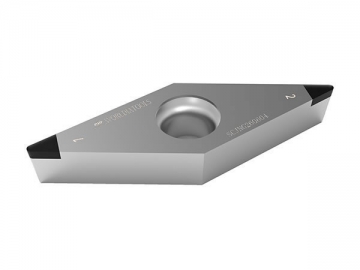

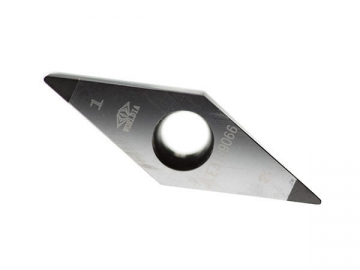

Features of ISO PCBN Indexable Insert
1. With the advantages of high abrasive resistance, high processing precision, good thermal conductivity and long service life, the PCBN insert meets the international standard of ISO.

2. The PCBN insert can realize high speed cutting and hard material cutting with high work efficiency, and also can facilitate fast clamping.

3. Our PCBN insert can be used repeatedly so it can lower your processing cost.

Application

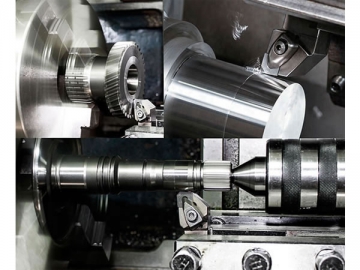

The PCBN insert is used to process hardened steel, hardened cast iron, grey cast iron and iron series metal work pieces.

Technical Specifications
Standard cutting edge Sharp Cutting Edge Strong Cutting Edge
S0102505 S0051502 S0103505
Shape ISO ANSI Cutting Edge Tip Shape Grade Dimensions in mm
PN311 PN310 PN312 ic φd s r la

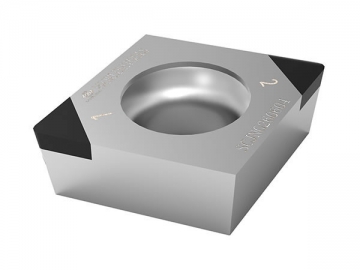

CCGW060202-1N CCGW2(1.5)(0.5)-1N S0102505 SLST30S ● ● ● 6.35 2.8 2.38 0.2 3.0
S0051502 ● ●
S0103505 ● ●
CCGW060204-1N CCGW2(1.5)1-1N S0102505 ● ● ● 0.4
S0051502 ● ●
S0103505 ● ●
CCGW060208-1N CCGW2(1.5)2-1N S0102505 ● ● ● 0.8
S0051502 ● ●
S0103505 ● ●
CCGW060202-2N CCGW2(1.5)(0.5)-2N S0102505 SLST30S ● ● ● 6.35 2.8 2.38 0.2 3.0
S0051502 ● ● 　
S0103505 　 ● ●
CCGW060204-2N CCGW2(1.5)1-2N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
CCGW060208-2N CCGW2(1.5)2-2N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 ● ●

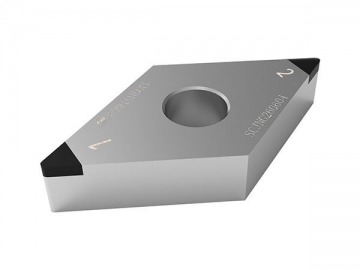

DCGW11T302-1N DCGW3(2.5)(0.5)-1N S0102505 SLST30S ● ● ● 9.525 4.4 3.97 0.2 3.0
S0051502 ● ● 　
S0103505 　 ● ●
DCGW11T304-1N DCGW3(2.5)1-1N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
DCGW11T308-1N DCGW3(2.5)2-1N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 　 ● ●
DCGW11T312-1N DCGW3(2.5)3-1N S0102505 ● ● ● 1.2
S0051502 ● ● 　
S0103505 　 ● ●
DCGW11T302-2N DCGW3(2.5)(0.5)-2N S0102505 SLST30S ● ● ● 9.525 4.4 3.97 0.2 3.0
S0051502 ● ● 　
S0103505 　 ● ●
DCGW11T304-2N DCGW3(2.5)1-2N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
DCGW11T308-2N DCGW3(2.5)2-2N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 　 ● ●
DCGW11T312-2N DCGW3(2.5)3-2N S0102505 ● ● ● 1.2
S0051502 ● ● 　
S0103505 　 ● ●

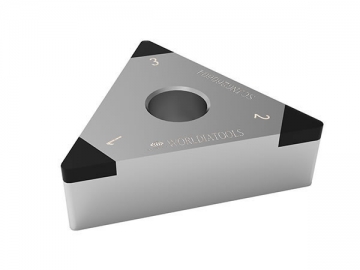

TPGW090202-1N TPGW(1.8)(1.5)(0.5)-1N S0102505 SLST30S ● ● ● 5.56 2.5 2.38 0.2 3.0
S0051502 ● ● 　
S0103505 　 ● ●
TPGW090204-1N TPGW(1.8)(1.5)1-1N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
TPGW090208-1N TPGW(1.8)(1.5)2-1N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 ● ●
TPGW090202-3N TPGW(1.8)(1.5)(0.5)-3N S0102505 SLST30S ● ● ● 5.56 2.5 2.38 0.2 3.0
S0051502 ● ● 　
S0103505 　 ● ●
TPGW090204-3N TPGW(1.8)(1.5)1-3N S0102505 ● ● ● 0.4
S0051502 ● ● 　
S0103505 　 ● ●
TPGW090208-3N TPGW(1.8)(1.5)2-3N S0102505 ● ● ● 0.8
S0051502 ● ● 　
S0103505 ● ●
Tip shape
SF SL SS CB CS SWW SWU
Full Face Solid Tipped Corner Solid CBN Standard Tipped Corners Standard Full Edge Solid Tipped Corners
Type ‘W’ 		Solid Tipped Corners
Type ‘U’
Cutting Edge Design
ST WG CB
Nose Radius Wiper Chip Breaker
　 　
Hard Steel Machining - Special PCBN Introduction.
Code Ap 22 25 28 30 40
Size Ap 2.2 2.5 2.8 3 4
Hard Steel Machining - Special PCBN Introduction.        Standard tipped comers      Solid tipped comers
Work piece
Material 		type WORLDIA
PCBN Grades 		Content PCBN Grade Bond Hardness Characteristics Applications
H Solid tipped
corners 		PN311 45~50 1 TiC 2600~2800 Good thermal stability and crater wear resistance Used for high-speed continuous
turning of hardened steel
PN310 60~65 1~2 TiCN 2600~2800 Combination of wear
resistance and thermal
stability 		Used for moderately interrupted
and continuous turning of
hardened steel
PN312 65~70 1< TiN 2700~2900 High degree of toughness due
to fine CBN and ceramic
binder matrix 		Used for heavy interrupted
turning of hardened steel

Material
The tool tip uses premium PCBN blanks manufactured by world famous companies.
The substrate uses high quality tungsten carbide.

We are a professional PCBN insert manufacturer in China. We offer various types of products such as PCD/PCBN boring cutter, PCD reamer, high penetration diamond scribing wheel, and tungsten carbide supported diamond die blanks.
