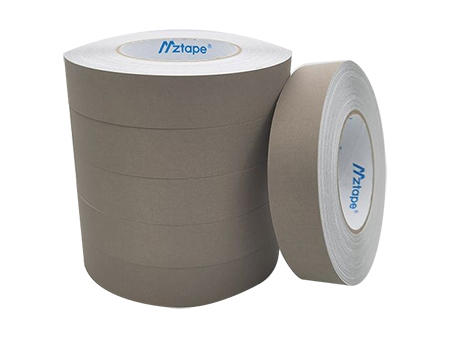

Flame Retardant Conductive Fabric Tape, MZ-ZD9713

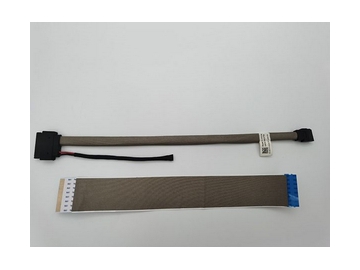

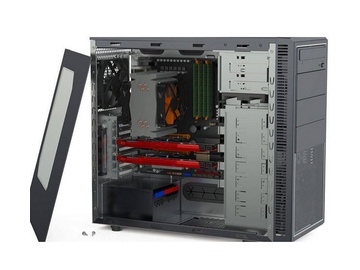

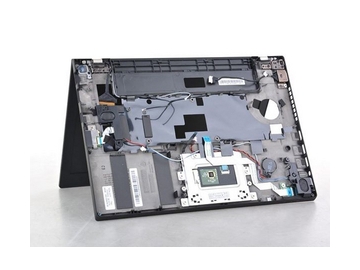

MZ-ZD9713 flame retardant conductive fabric tape features good antistatic, flame resistant performances and adhesion, is suitable for internal wire bundling, covering, shielding and flame retarding of computer, TV, display, server, etc.
1080mm*50mm/PCS, packaging dimensions L1120mm*W190mm*T190mm.
Product Structure120u white silicone paper
55u flame retardant conductive adhesive
80u gray flame retardant conductive fabric
| Property | Unit | Value | Testing method |
| Substrate thickness | mm | 0.08 ±0.005 | GB/T 7125-1999 |
| Total thickness | mm | 0.13 ±0.02 | GB/T 7125-1999 |
| Initial adhesion | Steel ball size# | 3-6 | GB/T 4852-2002 |
| 180° peel strength | gf/25mm | >1200 | GB/T 2792-1998 |
| Flame retardant grade | 25mm/10s | VTM-0 | UI94 |
| Adhesion durability | H | ≥12 | GB/T 4851-1998 |
| Resistivity | Ω | ≤0.05 | GB/T 4067-1999 |
| Heat Resistance | ℃ ∕ 30min | -10~100 | -- |
| Color | - | Gray | Visual |
Explore More Adhesive Tapes
Mingzhan is a professional adhesive product manufacturer located in Guangdong province, China, providing industrial tapes including conductive tape, EMI shielding tape, heat-resistant tape, flame retardant tape, thermally conductive tape, copper foil tape, aluminum foil tape, PET tape, reusable double-sided tape, etc.
